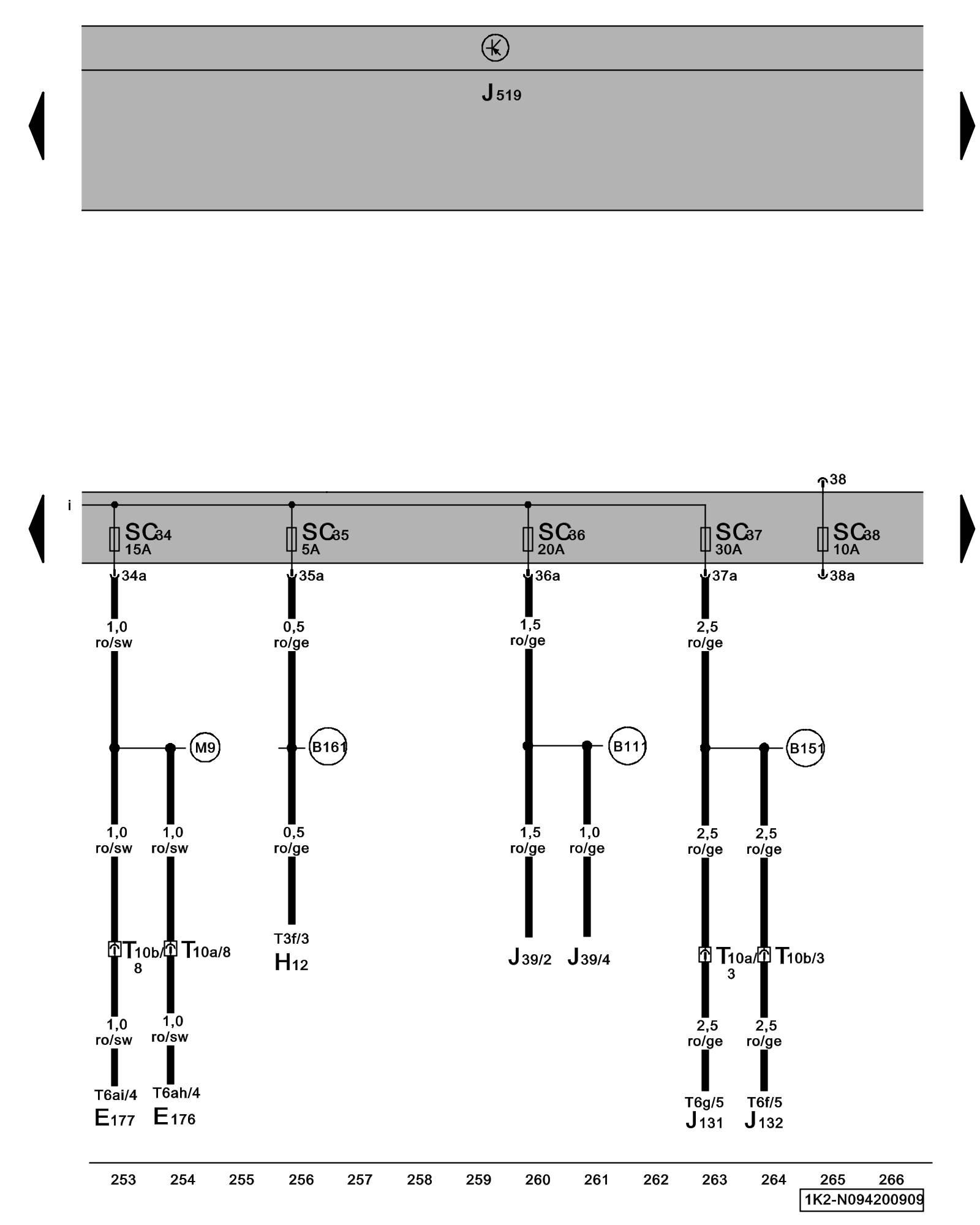

Diagram 94/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses SC on fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E176 - Driver's Seat Lumbar Support Adjustment Switch

E177 - Front Passenger's Seat Lumbar Support Adjustment Switch

H12 - Alarm Horn Central Locking / Anti-Theft Systems

J39 - Headlamp Washer Relay Locations

J131 - Driver's Heated Seat Control Module Component Locations Heated Driver Seat Control Module -J131-

J132 - Front Passenger's Heated Seat Control Module Heated Front Passenger Seat Control Module -J132-

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

SC34 - Fuse 34 (on fuse panel C) Locations

SC35 - Fuse 35 (on fuse panel C) Locations

SC36 - Fuse 36 (on fuse panel C) Locations

SC37 - Fuse 37 (on fuse panel C) Locations

SC38 - Fuse 38 (on fuse panel C) Locations

T3f - 3-Pin Connector

T6ah - 6-Pin Connector

T6ai - 6-Pin Connector

T6f - 6-Pin Connector

T6g - 6-Pin Connector

T10a - 10-Pin Connector

T10b - 10-Pin Connector

(B111) - Plus Connection 1 (30a), (in interior wiring harness)

(B151) - Plus Connection 3 (30a), in wiring harness interior

(B161) - Connection (anti-theft warning system), in wiring harness interior

(M9) - Connection (in seat adjustment wiring harness)
