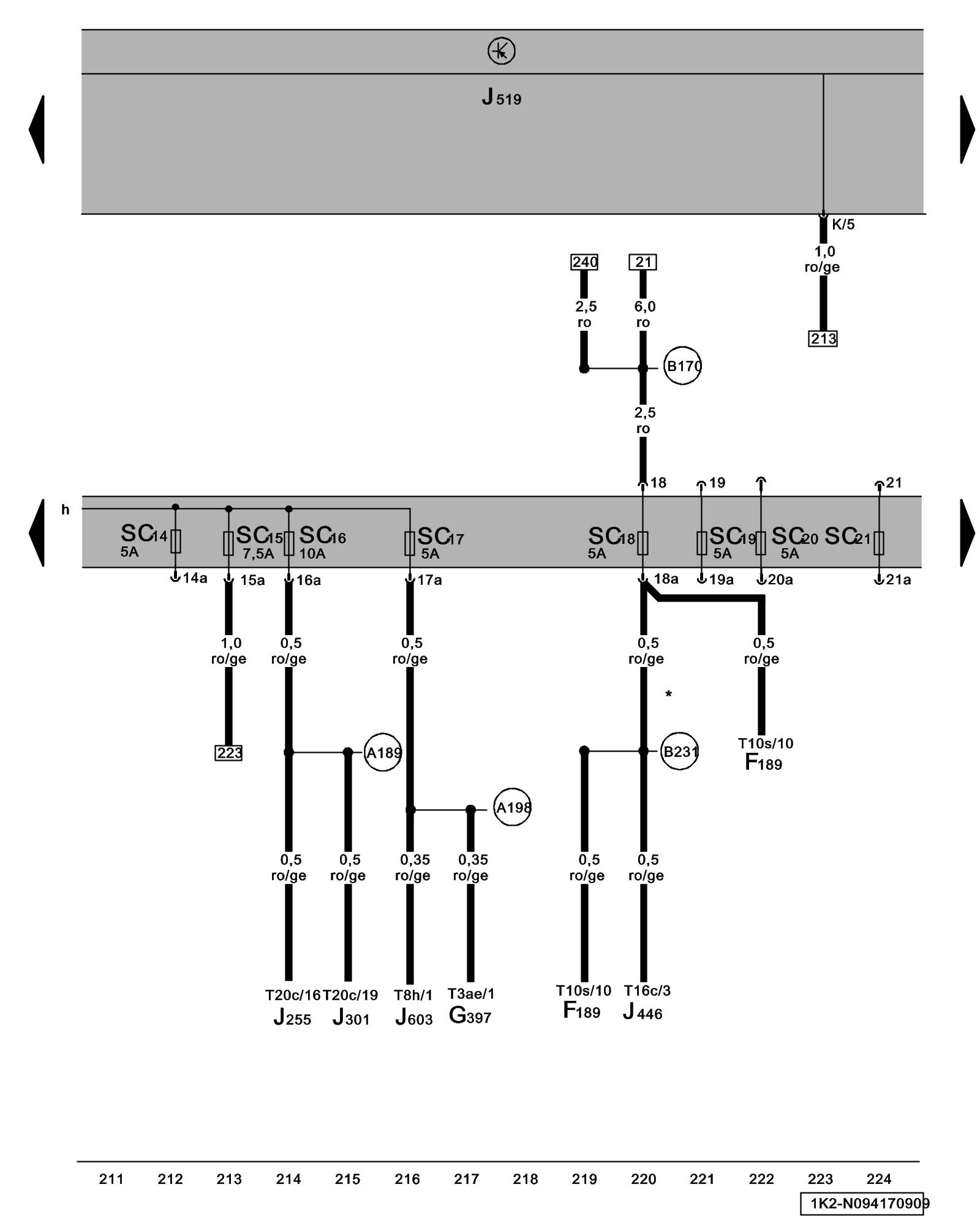

Diagram 94/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses SC on fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G397 - Rain/Light Recognition Sensor Locations

F189 - Tiptronic Switch

J255 - Climatronic Control Module Climatronic (Automatic Climate Control) Heating and A/C Components Overview

J301 - A/C Control Module Climatic (Manual Climate Control) Heating and A/C System Components Overview

J446 - Parking Aid Control Module Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J603 - Vehicle Position Recognition Control Module

SC14 - Fuse 14 (on fuse panel C) Locations

SC15 - Fuse 15 (on fuse panel C) Locations

SC16 - Fuse 16 (on fuse panel C) Locations

SC17 - Fuse 17 (on fuse panel C) Locations

SC18 - Fuse 18 (on fuse panel C) Locations

SC19 - Fuse 19 (on fuse panel C) Locations

SC20 - Fuse 20 (on fuse panel C) Locations

SC21 - Fuse 21 (on fuse panel C) Locations

T3ae - 3-Pin Connector

T8h - 10-Pin Connector

T10s - 10-Pin Connector

T16c - 16-Pin Connector

T20c - 20-Pin Connector

(A189) - Plus Connection 5 (30a) (in instrument panel wiring harness)

(A198) - Connection 6 (30a) (in instrument panel wiring harness)

(B170) - Plus Connection 2 (30) in passenger compartment wiring harness

(B231) - Plus Connection 5 (30a) (in interior wiring harness)

* - Vehicles with Parking Aid, only

Previous Diagram 94/16 (Tracks 197-210)

Next Diagram 94/18 (Tracks 225-238)
