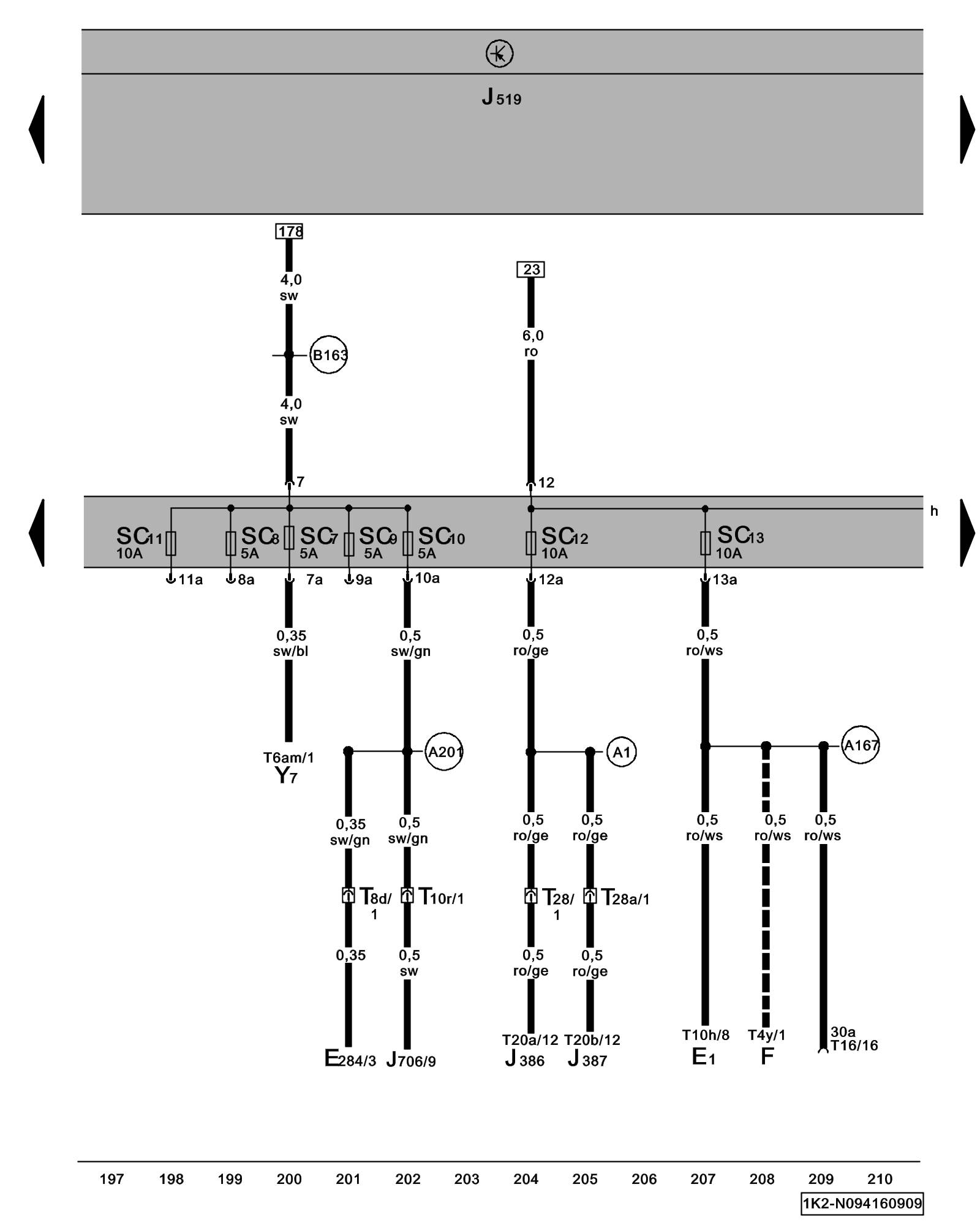

Diagram 94/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses SC on fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light Switch

E284 - Garage Door Opener Control Head

F - Brake Light Switch Brake Light and Park Brake Light Switch

J386 - Driver's Door Control Module Component Locations

J387 - Front Passenger's Door Control Module Component Locations Central Locking / Anti-Theft Systems

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J706 - Seat Occupied Recognition Control Module Passive Occupant Detection System

SC7 - Fuse 7 (on fuse panel C) Locations

SC8 - Fuse 8 (on fuse panel C) Locations

SC9 - Fuse 9 (on fuse panel C) Locations

SC10 - Fuse 10 (on fuse panel C) Locations

SC11 - Fuse 10 (on fuse panel C) Locations

SC12 - Fuse 12 (on fuse panel C) Locations

SC13 - Fuse 13 (on fuse panel C) Locations

T4y - 4-Pin Connector

T6am - 6-Pin Connector

T8d - 10-Pin Connector

T10h - 10-Pin Connector

T10r - 10-Pin Connector

T16 - 16- Pin Connector, Data Link Connector (DLC), bellow steering column, left

T20a - 20-Pin Connector

T20b - 20-Pin Connector

T28 - 28-Pin Connector

T28a - 28-Pin Connector

Y7 - Automatic Day/Night Interior Mirror

(A1) - Plus Connection (30a), in instrument panel wiring harness

(A167) - Plus Connection 3 (30a) (in instrument panel wiring harness)

(A201) - Plus Connection 6 (15a)(in instrument panel wiring harness)

(B163) - Plus Connection 1 (15) (in interior wiring harness)

--- - through November 2005

Previous Diagram 94/15 (Tracks 183-196)

Next Diagram 94/17 (Tracks 211-224)
