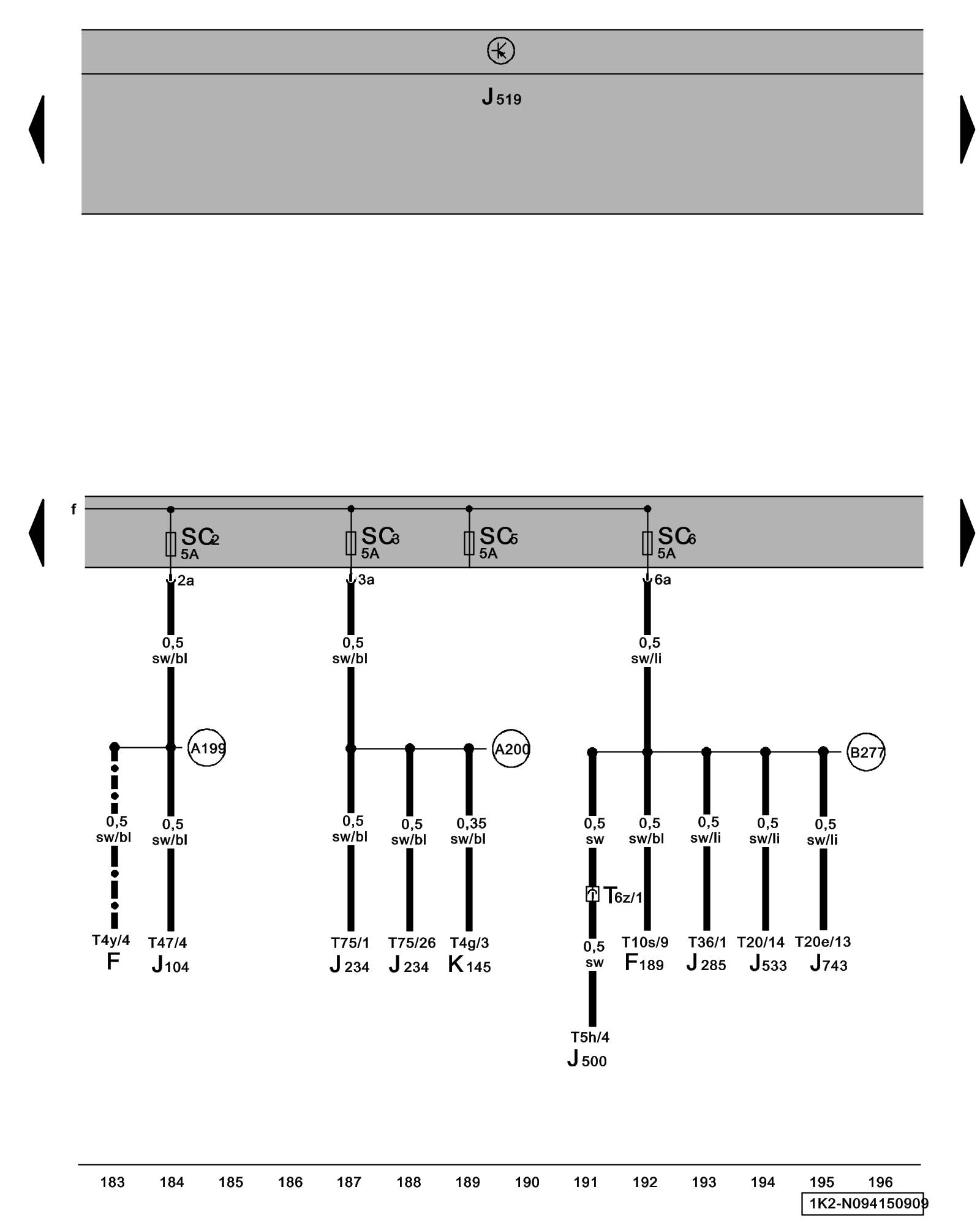

Diagram 94/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses SC on fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake Light Switch Brake Light and Park Brake Light Switch

F189 - Tiptronic Switch

J104 - ABS Control Module ABS Control Module (models with ABS / EDL/ASR) -J104-

J234 - Airbag Control Module Component Locations Airbag Control Module -J234-

J285 - Instrument Cluster Control Module Component Locations Locations

J500 - Power Steering Control Module Power Steering Control Module -J500-

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J533 - Data Bus On Board Diagnostic Interface Component Locations Locations

J743 - Direct Shift Gearbox (DSG) Mechatronic

K145 - Front Passenger's Airbag Disabled Indicator Lamp

SC2 - Fuse 2 (on fuse panel C) Locations

SC3 - Fuse 3 (on fuse panel C) Locations

SC5 - Fuse 5 (on fuse panel C) Locations

SC6 - Fuse 6 (on fuse panel C) Locations

T4g - 4-Pin Connector

T4y - 4-Pin Connector

T5h - 5-Pin Connector

T6z - 6-Pin Connector

T10s - 10-Pin Connector

T20 - 20-Pin Connector

T20e - 20-Pin Connector

T36 - 36-Pin Connector

T47 - 47-Pin Connector

T75 - 75-Pin Connector

(A199) - Plus Connection 4 (15a)(in instrument panel wiring harness)

(A200) - Plus Connection 5 (15a)(in instrument panel wiring harness)

(B277) - Plus Connection 1 (15a) (in main wiring harness)

-•- - from December 2005
