Diagram 120/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

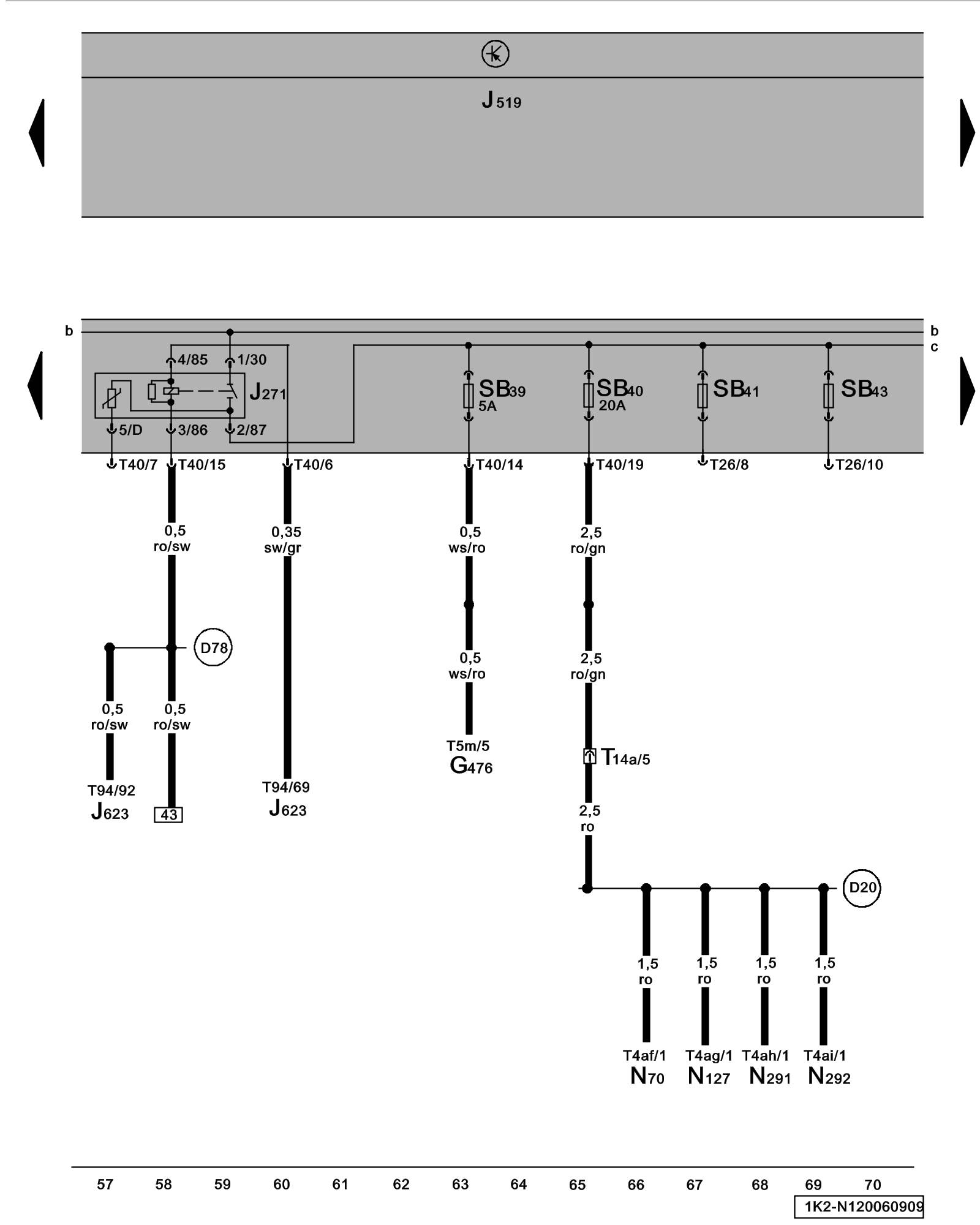

Motronic Engine Control Module (ECM) Power Supply Relay, Fuses SB on fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G476 - Clutch Position Sensor

J271 - Motronic Engine Control Module (ECM) Power Supply Relay Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J623 - Engine Control Module (ECM) Locations

N70 - Ignition Coil 1 with Power Output Stage Locations

N127 - Ignition Coil 2 with Power Output Stage Locations

N291 - Ignition Coil 3 with Power Output Stage Locations

N292 - Ignition Coil 4 with Power Output Stage Locations

SB39 - Fuse 39 (on fuse panel B)

SB40 - Fuse 40 (on fuse panel B)

SB41 - Fuse 41 (on fuse panel B)

SB43 - Fuse 43 (on fuse panel B)

T4af - 4-Pin Connector

T4ag - 4-Pin Connector

T4ah - 4-Pin Connector

T4ai - 4-Pin Connector

T5m - 5-Pin Connector

T14a - 14-Pin Connector

T26 - 26-Pin Connector

T40 - 40-Pin Connector

T94 - 94-Pin Connector

(D20) - Connection (87a) (in right front wiring harness)

(D78) - Plus Connection 1 (30a) (in engine compartment wiring harness)
