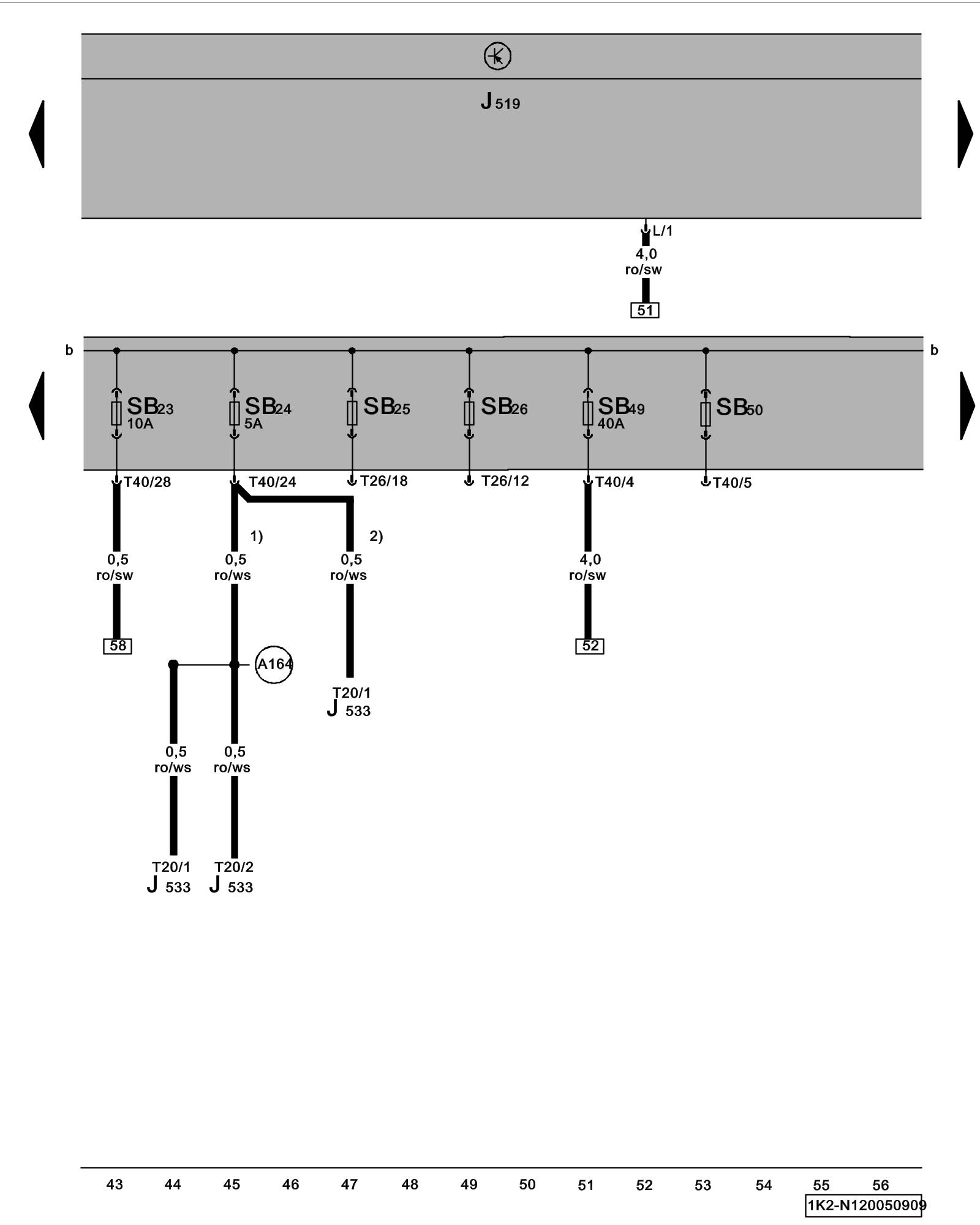

Diagram 120/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses SB on fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J533 - Data Bus On Board Diagnostic Interface Component Locations Locations

SB23 - Fuse 23 (on fuse panel B)

SB24 - Fuse 24 (on fuse panel B)

SB25 - Fuse 25 (on fuse panel B)

SB26 - Fuse 26 (on fuse panel B)

SB49 - Fuse 49 (on fuse panel B)

SB50 - Fuse 50 (on fuse panel B)

T20 - 20-Pin Connector

T26 - 26-Pin Connector

T40 - 40-Pin Connector

(A164) - Plus Connection 2 (30a) (in instrument panel wiring harness)

1) - Through June 2007

2) - From July 2007
