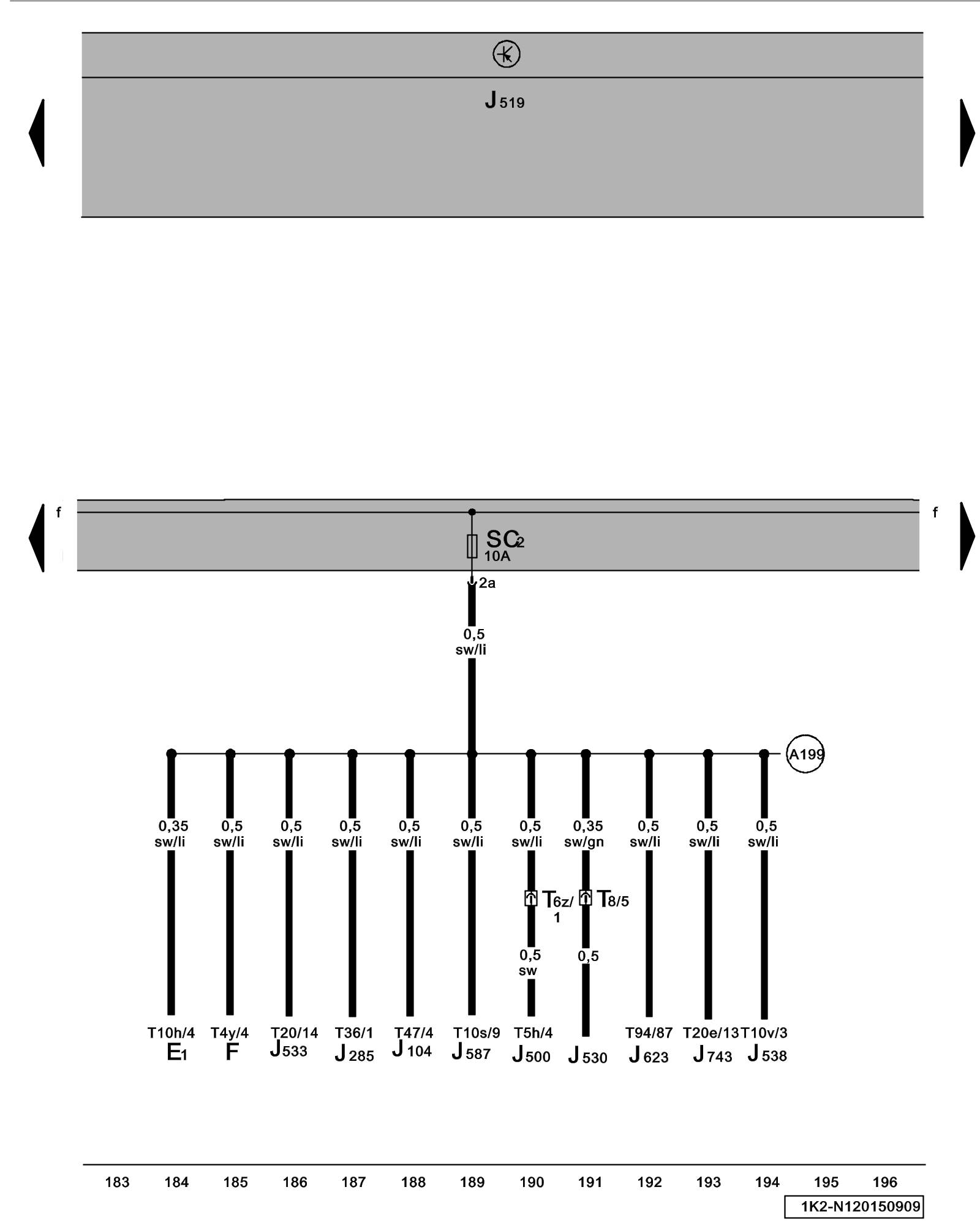

Diagram 120/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light Switch

F - Brake Light Switch Brake Light and Park Brake Light Switch

J104 - ABS Control Module ABS Control Module (models with ABS / EDL/ASR) -J104-

J285 - Instrument Cluster Control Module Component Locations Locations

J500 - Power Steering Control Module Power Steering Control Module -J500-

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J530 - Garage Door Opener Control Module

J533 - Data Bus On Board Diagnostic Interface Component Locations Locations

J538 - Fuel Pump (FP) Control Module Locations

J587 - Selector Lever Sensor System Control Module Direct Shift Gearbox 02E (DSG)

J623 - Engine Control Module (ECM) Locations

J743 - Direct Shift Gearbox (DSG) Mechatronic

SC2 - Fuse 2 (on fuse panel C) Locations

T4y - 4-Pin Connector

T5h - 5-Pin Connector

T6z - 6-Pin Connector

T8 - 8-Pin Connector

T10h - 10-Pin Connector

T10s - 10-Pin Connector

T10v - 10-Pin Connector

T20 - 20-Pin Connector

T20e - 20-Pin Connector

T36 - 36-Pin Connector

T47 - 47-Pin Connector

T94 - 94-Pin Connector

(A199) - Plus Connection 4 (15a)(in instrument panel wiring harness)
