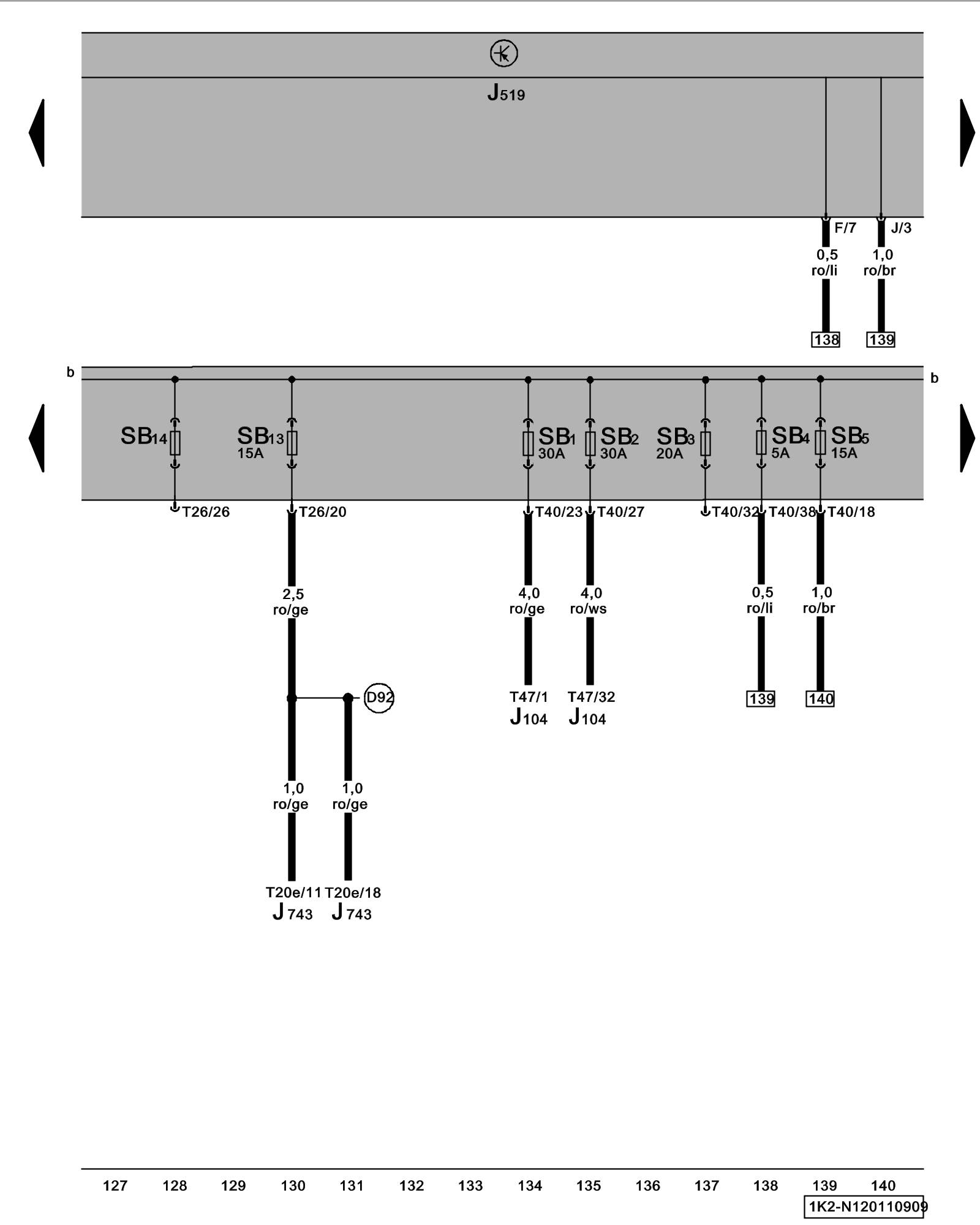

Diagram 120/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuse SB on fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS Control Module ABS Control Module (models with ABS / EDL/ASR) -J104-

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J743 - Direct Shift Gearbox (DSG) Mechatronic

SB1 - Fuse 1 (on fuse panel B)

SB2 - Fuse 2 (on fuse panel B)

SB3 - Fuse 3 (on fuse panel B)

SB4 - Fuse 4 (on fuse panel B)

SB5 - Fuse 5 (on fuse panel B)

SB13 - Fuse 13 (on fuse panel B)

SB14 - Fuse 14 (on fuse panel B)

T20e - 20-Pin Connector

T26 - 26-Pin Connector

T40 - 40-Pin Connector

T47 - 47-Pin Connector

(D92) - Connection (30 al) (in engine compartment wiring harness)

Previous Diagram 120/10 (Tracks 113-126)

Next Diagram 120/12 (Tracks 141-154)
