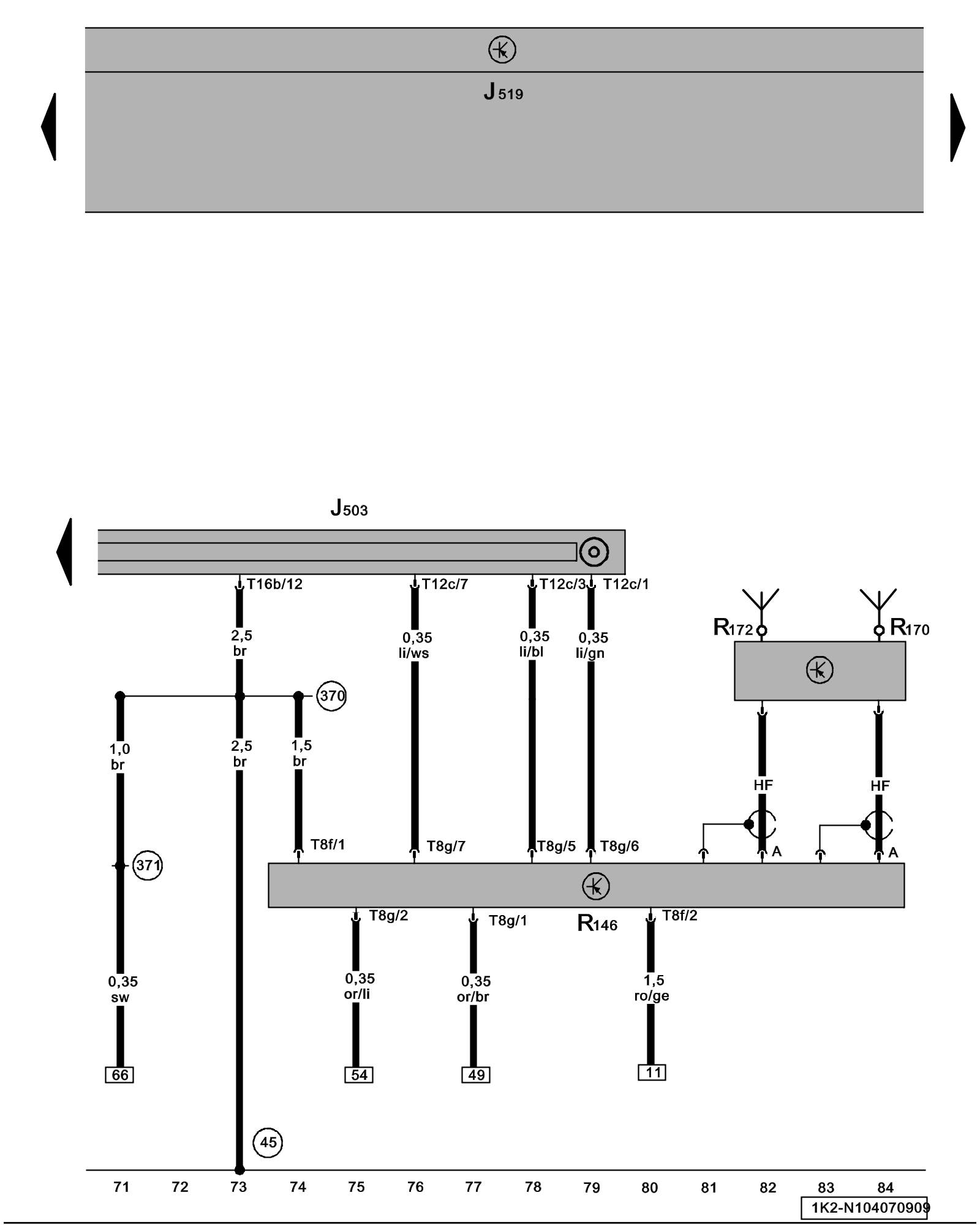

Diagram 104/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Satellite Radio, Satellite Antenna, Satellite Tuner Antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module Radio Navigation System Component Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

R146 - Satellite Radio Antenna Systems Overview

R170 - Satellite Antenna Antenna Systems Overview

R172 - Satellite Tuner Antenna Antenna Systems Overview

T8f - 8-Pin Connector

T8g - 8-Pin Connector

T12c - 12-Pin Connector

T16b - 16- pin connector

(45) - Ground Connection (behind instrument panel, center)

(370) - Ground Connection 5 (in main wiring harness)

(371) - Ground Connection 6 (in main wiring harness)
