Diagram 104/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

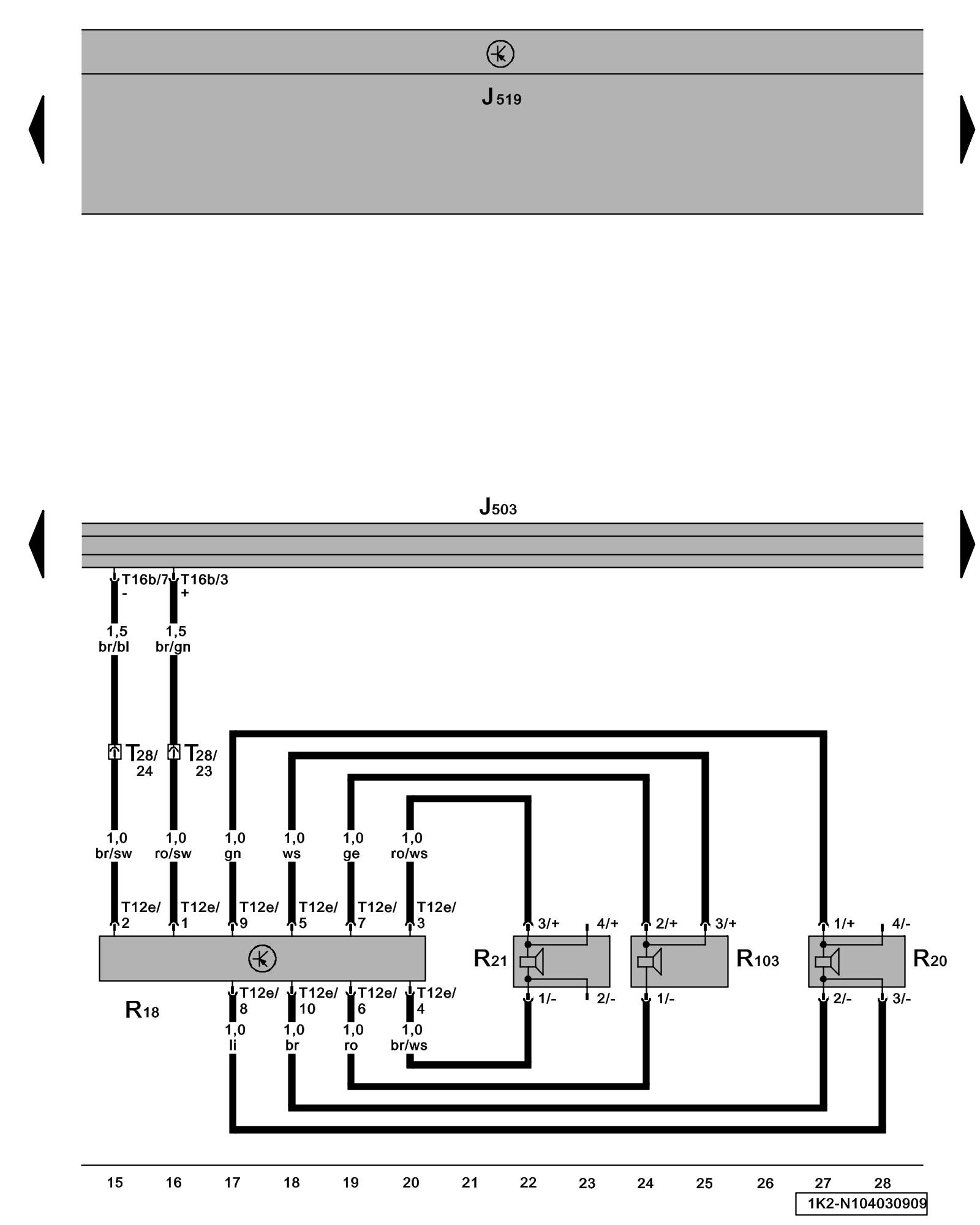

Radio, Left Frequency Crossover, Left Front Treble Speaker, Left Front Midrange Speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module Radio Navigation System Component Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

R18 - Left Frequency Crossover Sound System Component Locations

R20 - Left Front Treble Speaker Sound System Component Locations

R21 - Left Front Bass Speaker Sound System Component Locations

R103 - Left Front Midrange Speaker Sound System Component Locations

T12e - 12-Pin Connector

T16b - 16-Pin Connector

T28 - 28-Pin Connector

Previous Diagram 104/2 (Tracks 1-14)

Next Diagram 104/4 (Tracks 29-42)
