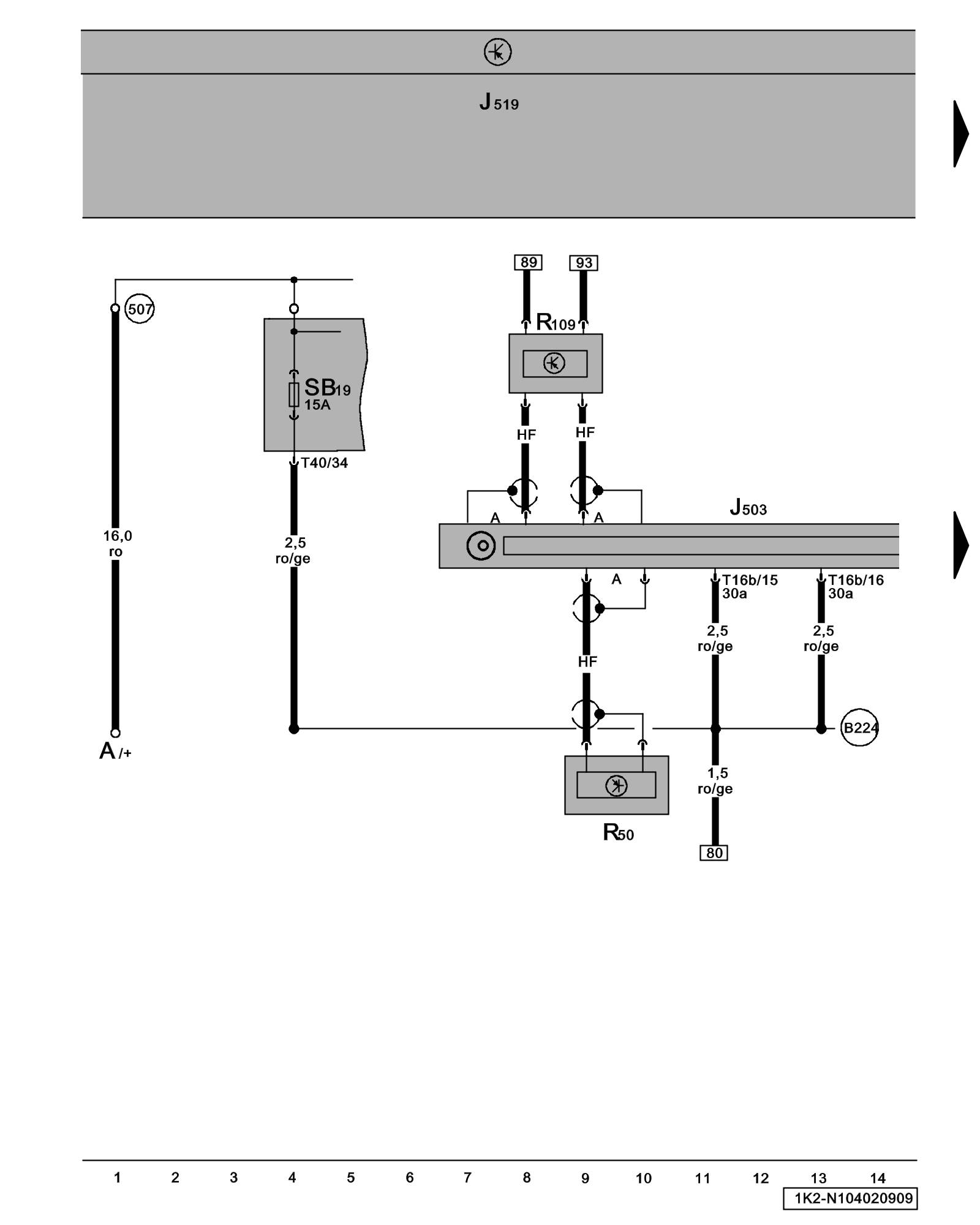

Diagram 104/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Right Antenna Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

J503 - Radio/Navigation Display Control Module Radio Navigation System Component Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

R50 - Antenna for Navigation System Antenna Systems Overview

R109 - Right Antenna Module Antenna Systems Overview

SB19 - Fuse 19 (on fuse panel B)

T16b - 16-Pin Connector

T40 - 40-Pin Connector

(507) - Threaded Connection (30) (on relay holder/battery)

(B224) - Connection 1 (Radio) (interior wiring harness)

Next Diagram 104/3 (Tracks 15-28)
