Diagram 105/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

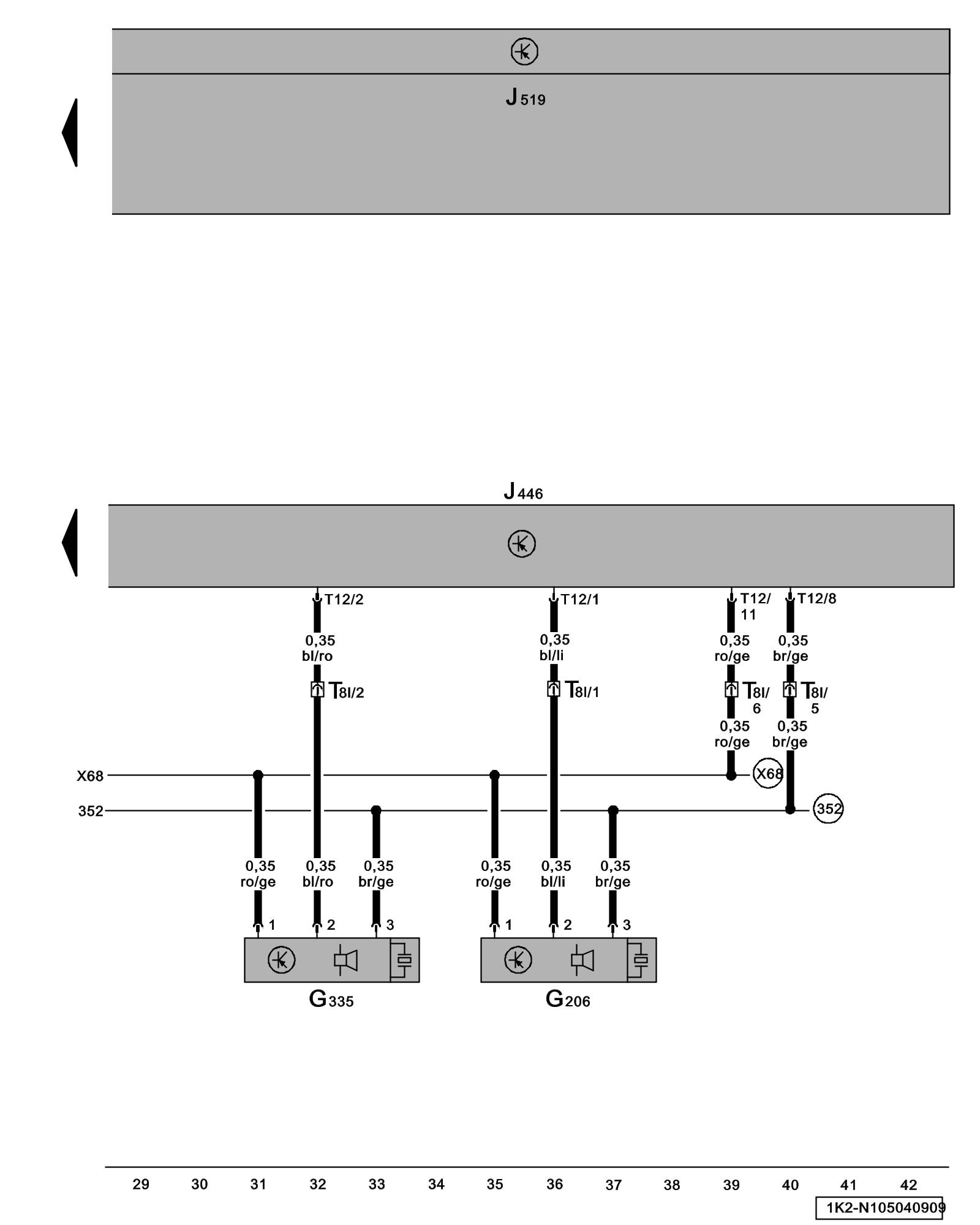

Right Rear Parking Aid Sensor, Right Rear Inner Parking Aid Sensor, Parking Aid Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G206 - Right Rear Parking Aid Sensor 4 Channel Parking Aid Assembly Overview

G335 - Right Rear Inner Parking Aid Sensor 4 Channel Parking Aid Assembly Overview

J446 - Parking Aid Control Module Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

T8l - 8-Pin Connector

T12 - 12-Pin Connector

(352) - Parking Aid Ground Connection (in in rear bumper wiring harness)

(X68) - Parking Aid Connection (in rear bumper wiring harness)

Previous Diagram 105/3 (Tracks 15-28)
