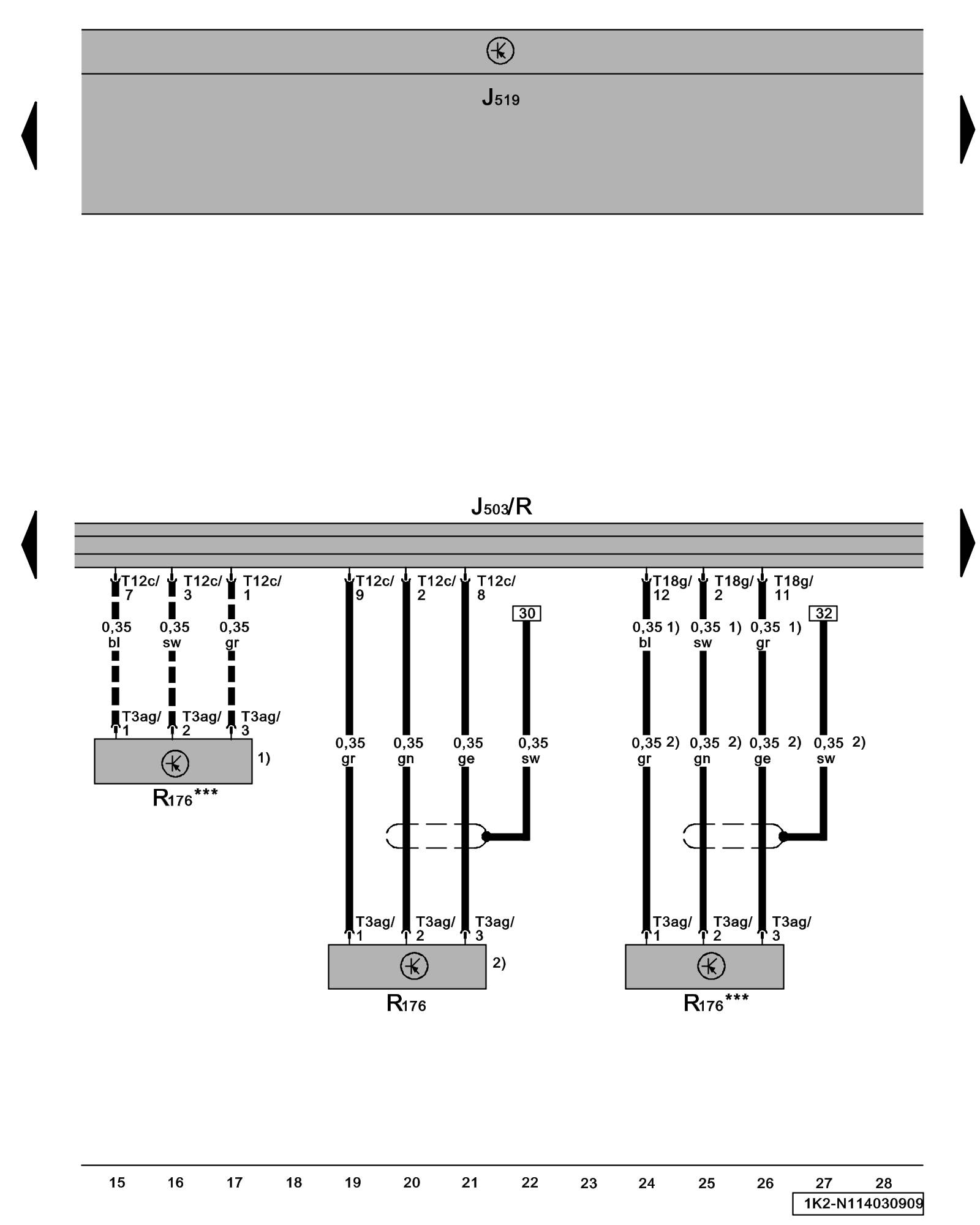

Diagram 114/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/Navigation Display Unit Control Module, Radio, Auxiliary Video/Audio Connection Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Unit Control Module Radio Navigation System Component Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

R - Radio Sound System Component Locations

R176 - Auxiliary Video/Audio Connection Module

T3ag - 3-Pin Connector

T12c - 12-Pin Connector

T18g - 18-Pin Connector

*** - From July 2006

--- - Vehicles without navigation system, only

1) - Through June 2007

2) - From July 2007

Previous Diagram 114/2 (Tracks 1-14)

Next Diagram 114/4 (Tracks 29-42)
