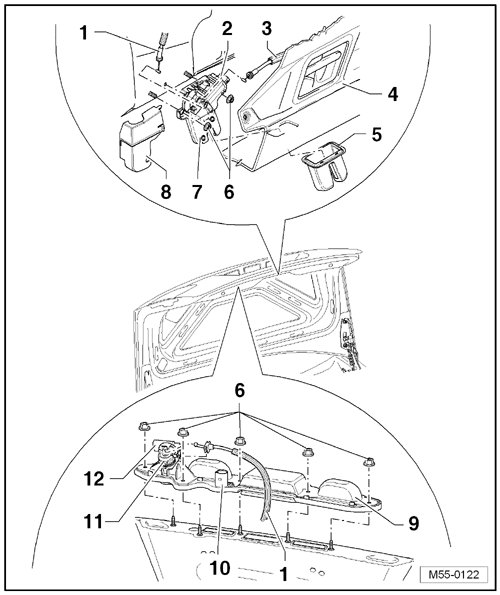

Rear Lid Locking and Unlocking Component Overview

Rear Lid Locking and Unlocking Component Overview






1 Release

• From rear lid lock to lock cylinder.

2 Connector

• For rear lid lock.

3 Release

• From rear lid lock to emergency release lever.

• Only for vehicles with emergency release mechanism.

4 Rear Lid Trim

5 Lock Cover

6 Hex Nut

• 8 Nm

7 Hood Lock

• Removing and installing, refer to => [ Rear Lid Lock ] Rear Lid Lock

8 Cover

• Does not belong to lid lock delivery casing.

• Secured with retaining tabs to lid lock.

9 Handle

• Removing and installing, refer to => [ Grip Piece ] Grip Piece

10 Connector

• For license plate light and for vehicles with handle button.

11 Lock Cylinder

• Removing and installing, refer to=> [ Lock Cylinder ] Lock Cylinder

12 Connector

• For lock cylinder.
