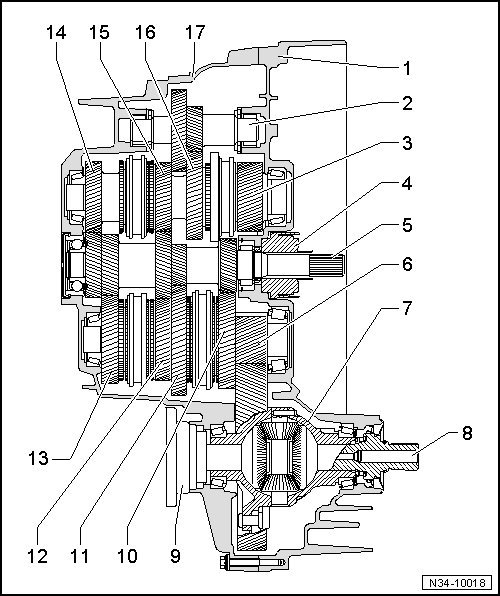

Transmission Gear Overview
Transmission Gear Overview
1 Clutch Housing
2 Reverse Shaft
3 Output Shaft, 5th, 6th and Reverse Gears
4 Slave Cylinder with Release Bearing
5 Input Shaft
6 Output Shaft, 1st to 4th Gears
7 Differential
8 Stub Shaft
Allocation, refer to the parts catalog.
9 Flange Shaft
10 2nd Gear Wheel
11 1st Gear Wheel
12 4th Gear Wheel
13 3rd Gear Wheel
14 5th Gear Wheel
15 6th Gear Wheel
16 Reverse Gear Wheel
17 Transmission Housing
