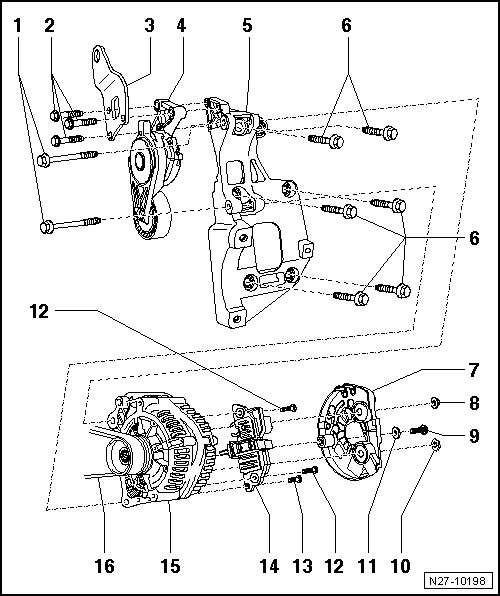

Generator Assembly Overview, 2.0L FSI

Generator Assembly Overview, 2.0L FSI





1 Collar bolts

• M8 x 90

• 23 Nm

2 Collar bolts

• M8 x 50

• 23 Nm

3 Transportation plates

4 Tensioner for ribbed belt

5 Sub-assembly bracket

• for generator and A/C compressor

• Follow the tightening sequence, refer to => [ Sub-Assembly Bracket, Tightening Sequence, 2.0L SDI ] Specifications.

6 Collar bolts

• M10 x 45

• 52 Nm

• Follow the tightening sequence, refer to => [ Sub-Assembly Bracket, Tightening Sequence, 2.0L SDI ] Specifications.

7 Protective cap

8 Hex head collar nut

• M8

• B+ wire nut to rear side of generator

• 15 Nm

9 Phillips head screw

• M5 x 21

• 4.5 Nm

10 Flat hex nut

• M8

11 Washer

• M5

12 Phillips head screws

• M4 x 19

• 2 Nm

13 Phillips head screw

• M4 x 13

• 2 Nm

14 Voltage regulator

• Removing and installing voltage regulator, refer to => [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo

15 Generator

• Generator, removing and installing, refer to => [ Generator, 2.0L FSI ] Generator, 2.0L FSI

• Generator (GEN), checking, refer to => [ Generator, Checking ] Testing and Inspection

• Securing B+ wire to generator, refer to => [ B+ Cable Mount On Generator ] B+ Cable Mount On Generator

• Generator ribbed belt pulley, removing and installing, refer to => [ Ribbed Belt Pulley with Freewheel, Valeo ] Ribbed Belt Pulley with Freewheel, Valeo

16 Ribbed belt

• Ribbed belt routing, refer to => [ Ribbed Belt Routing, 2.0L FSI ] Ribbed Belt Routing, 2.0L FSI

• Ribbed belt, checking, refer to => [ Ribbed Belt, Checking ] Testing and Inspection

without illustration

• M5 wire clamp nut to the rear side of the generator - 3.2 Nm
