Fastener Tightening Specifications - Clutch

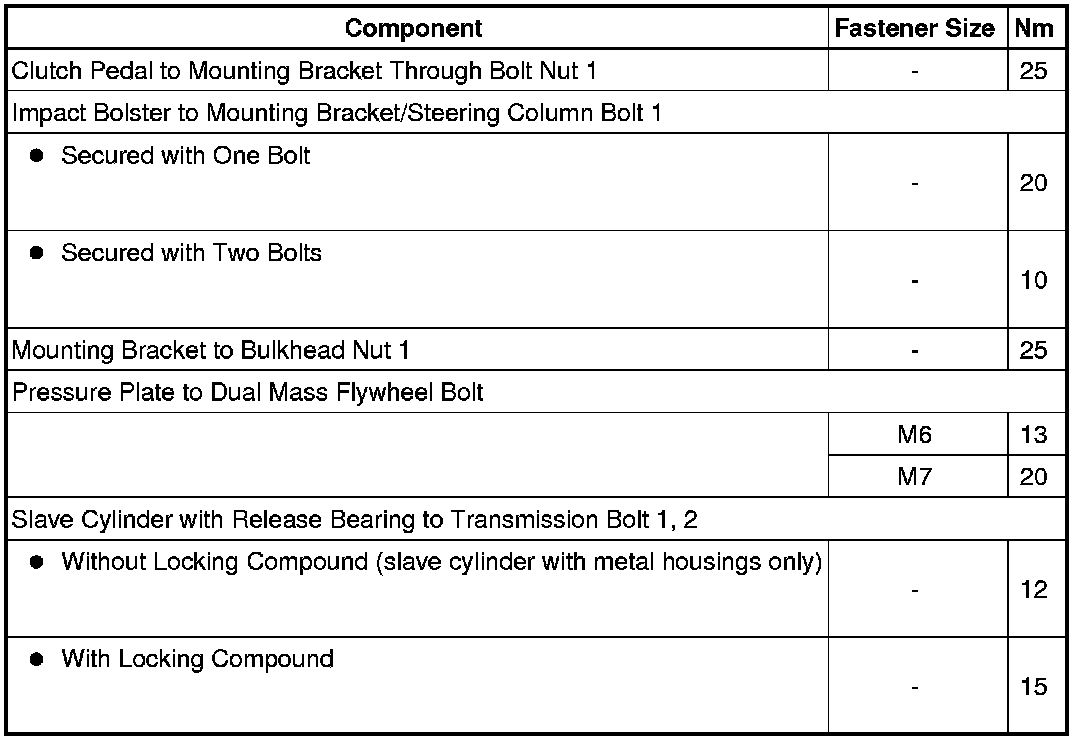

Fastener Tightening Specifications





• 1 Always replace

• 2 Carefully tighten diagonally in small stages so that the slave cylinder bolt eyelets do not break off
