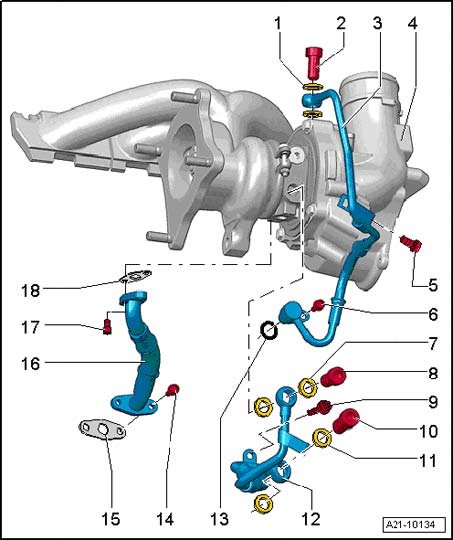

Coolant Supply and Oil Pipes Overview

Coolant Supply And Oil Pipes Overview







1 - Seal
- Replace
2 - Bolt
- 20 Nm plus an additional 45 degrees (1/8 turn)
3 - Oil Supply Line
4 - Turbocharger
- Can only be replaced with exhaust manifold and pressure unit.
5 - Bolt
- 9 Nm
6 - Bolt
- 9 Nm
7 - Seal
- Replace
8 - Bolt
- 20 Nm plus an additional 45 degrees (1/8 turn)
9 - Bolt
- 9 Nm
10 - Bolt
- 20 Nm plus an additional 45 degrees (1/8 turn)
11 - Seal
- Replace
12 - Coolant Supply Line
13 - O-Ring
- Replace
14 - Bolt
- 9 Nm
15 - Gasket
- Replace
16 - Oil Return Line
17 - Bolt
- 9 Nm
18 - Gasket
- Replace
