Noise Generator Assembly Overview

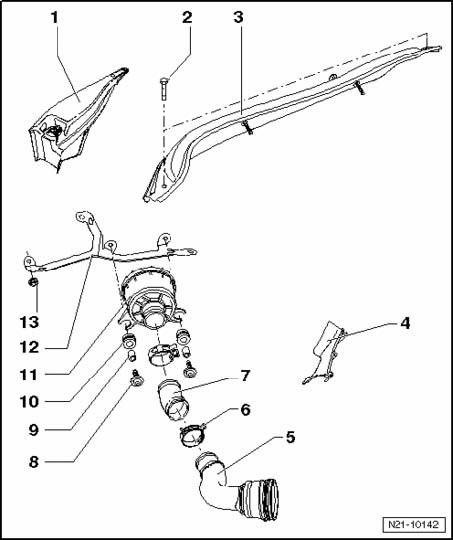

Noise Generator Assembly Overview (GTI)







1 - Cover
2 - 8 Nm
3 - Plenum Chamber Bulkhead
4 - Hood
- For duct to plenum chamber bulkhead
5 - Charge Air Pipe
6 - Clamp
7 - Charge Air Hose
8 - 8 Nm
9 - Spacer Sleeve
10 - Rubber Bushing
11 - Noise Generator
12 - Bracket
- For noise generator
13 - 8 Nm
