Charge Air Cooling Assembly Overview

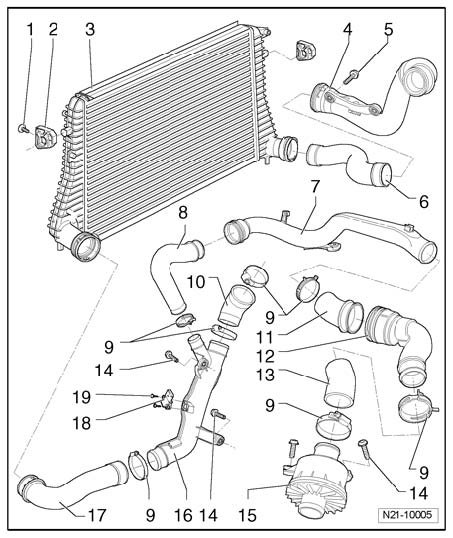

Charge Air Cooling Assembly Overview (GTI)

CAUTION: The charge air pipe clamps must be tightened to 5.5 Nm. An insufficient or excessive tightening torque can cause the charge air hose to come off the charge air pipe while driving.







1 - 5 Nm
2 - Mount
- For charge air cooler
3 - Charge Air Cooler
4 - Charge Air Pipe
5 - 10 Nm
6 - Charge Air Hose
- Assembly of hose connections with connection couplings.
7 - Charge Air Pipe
- To noise generator
8 - Charge Air Hose
- Assembly of hose connections with connection couplings.
9 - Hose Clamp
10 - Charge Air Hose
- To throttle valve control module
11 - Charge Air Hose
12 - Charge Air Pipe
13 - Charge Air Hose
14 - 8 Nm
15 - Noise Generator
- Mounting parts.
16 - Charge Air Pipe
17 - Charge Air Hose
- Assembly of hose connections with connection couplings.
18 - Charge Air Pressure Sensor
19 - 5 Nm
