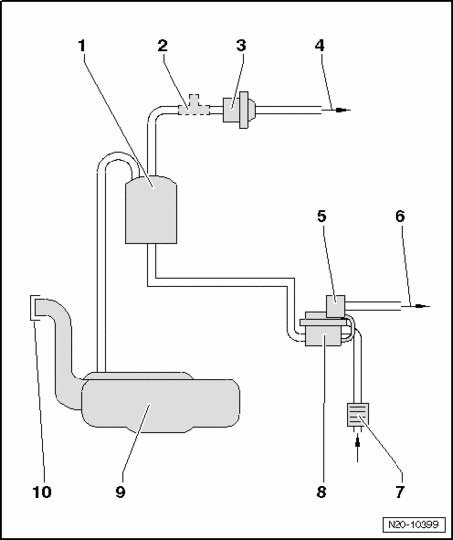

EVAP System Functional Overview

EVAP System Functional Overview







1 - EVAP Canister
2 - Adapter Hose KLI 9210/55-1 Installation Location
- With leak test in fuel system
3 - EVAP Canister Purge Regulator Valve
4 - Vent Line
- Throttle valve control module
5 - Solenoid Valve
- For leak detection pump
6 - Vacuum Line
- To intake manifold
7 - Air Filter Housing
- For leak detection pump
8 - Leak Detection Pump
9 - Fuel Tank
10 - Cap
