Headlamps with Headlamp Washer System, GTI

Headlamps with Headlamp Washer System, GTI

• It is not necessary to disconnect battery.

• Illustrations depict removal and installation of left headlamp.

• If one headlamp is removed, it must always be adjusted after installation

• Should an HID headlamp be removed, perform basic setting after installation

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove the front bumper cover.

- Release and disconnect multi-pin connector - arrow - on back side of headlamp.

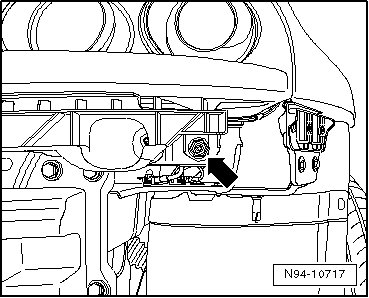

- Remove the mounting bolt - arrow - at on the inside of the headlamp.





- Remove the mounting bolt - arrow - on the bottom of the headlamp.





- Remove screws - arrow - at top of headlamp.





- Remove headlamp from body cutout.

Installing

Install in reverse order of removal, noting the following:

- Tighten the headlamp mounting bolts to the specification. Refer to=> [ Specifications ] Specifications.

- Check installation position of headlamp for uniform gap dimensions.

If headlamp has an uneven gap dimension to the body, installation position must be corrected. Refer to=> [ Headlamps, Correcting Installation Position ] Headlamps, Correcting Installation Position.

- Check headlamp for function.

• If one headlamp is removed, it must always be adjusted after installation.

- Check headlamp adjustment and adjust headlamp if necessary
