Sealing Flange and Dual Mass Flywheel/Drive Plate Assembly Overview

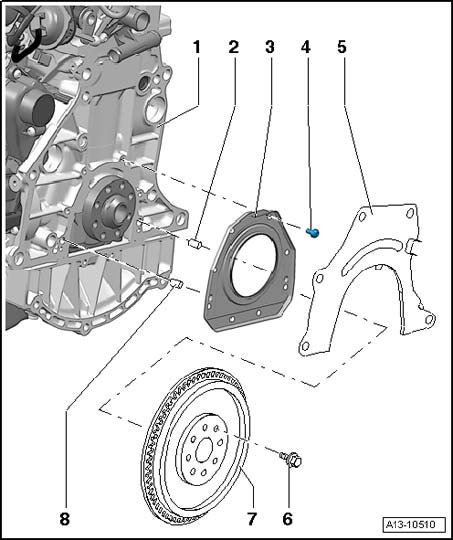

Sealing Flange and Dual Mass Flywheel/Drive Plate Assembly Overview





1 - Cylinder Block

2 - Fitting Pin

3 - Transmission Side Sealing Flange
^ With seal
^ Only replaced as complete unit

4 - Bolt

5 - Intermediate Plate
^ Must be located on dowel sleeves
^ Do not damage or bend when doing assembly work

6 - Bolt
^ For dual-mass flywheel/drive plate
^ 60 Nm plus an additional 90° (1/4 turn)
^ Replace

7 - Dual-Mass Flywheel/Drive Plate
^ Only possible to install in one position - Bores are offset

8 - Fitting Pin
^ Not installed





Transmission Side Sealing Flange Tightening Sequence
- Tighten bolts - 1 through 8 - in the sequence shown:
- 1. Hand tighten bolts
- 2. Tighten bolts to 9 Nm





Installing Intermediate Plate
- Hook in intermediate plate at sealing flange and push it onto the alignment sleeves - arrows -.
