Secondary Air Injection System Components

Secondary Air Injection System Components

=> [ ]

=> [ ]

Secondary Air Injection Pump Motor (V101)

Removing

- Remove the noise insulation.

- Remove the left front wheel housing liner..

- Loosen the lines - 1 -, loosen the bolts - 2 -, disconnect the electrical connector - 3 - and remove the AIR pump motor.





Installing

Installation is performed in reverse order.

Secondary Air Injection Solenoid Valve (N112)

Removing

- Remove the air filter housing. Refer to => [ Air Filter Housing ] Air Filter Housing.

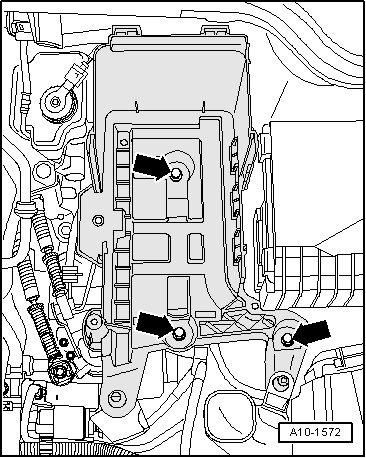

- Remove the battery, battery tray bolts - arrows - and tray.





- Disconnect the connector - A - and hose - B - from the AIR solenoid valve.

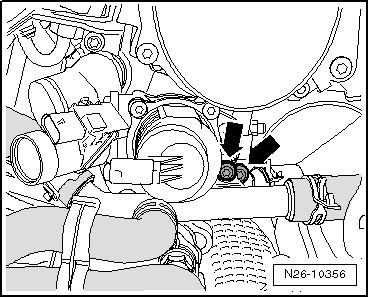

- Loosen the coolant pipe; remove the bolts - arrows -.

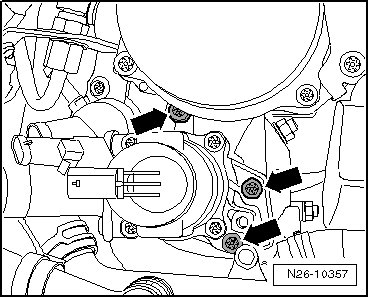

- Remove the bolts - arrows - and remove the AIR solenoid valve.





Installing

Installation is performed in the reverse order of removal, noting the following:

- Replace the gaskets.
