Secondary Air Injection System Assembly Overview

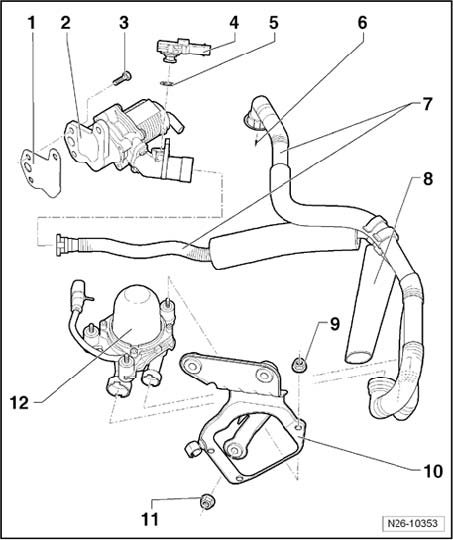

Secondary Air Injection System Assembly Overview (CBFA)







1 - Gasket
- Replace
2 - Secondary Air Injection Solenoid Valve
3 - 9 Nm
4 - Secondary Air Injection Sensor
5 - Seal
- Replace
6 - To Air Filter
7 - Secondary Air Lines
8 - Routing Aid for Air Filter Drain Line
9 - 9 Nm
10 - Secondary Air Injection Pump Motor Bracket
11 - 25 Nm
12 - Secondary Air Injection Pump Motor
