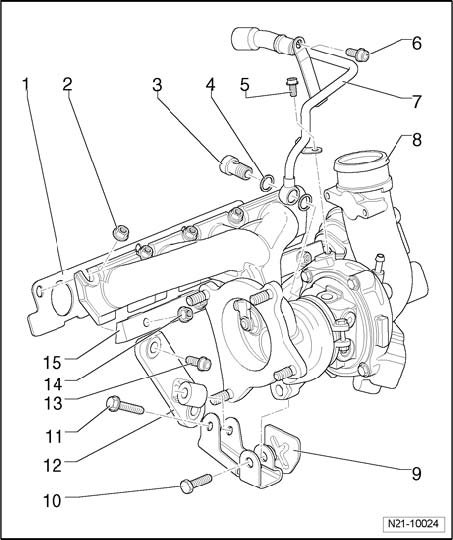

Turbocharger and Coolant Return Line Component Overview

Turbocharger And Coolant Return Line Component Overview







1 - Gasket
2 - 20 Nm
- Replace
- Coat stud bolts on exhaust manifold with hot bolt paste.
- Hot bolt paste
3 - 35 Nm
4 - Seal
- Replace
5 - 9 Nm
6 - 23 Nm
- Installed with two brackets only on coolant return line
7 - Coolant return line
- Gradual introduction of coolant return lines with a bracket
8 - Turbocharger
9 - Bracket
10 - 30 Nm
- Coat bolt with hot bolt paste
- Hot bolt paste
11 - 30 Nm
- Coat bolt with hot bolt paste
- Hot bolt paste
12 - Bracket
13 - 23 Nm
14 - 30 Nm
- Do not loosen to remove turbocharger
- Replace
- Coat stud bolts on exhaust manifold with hot bolt paste.
- Hot bolt paste
15 - Fastening strip
