EVAP System Assembly Overview

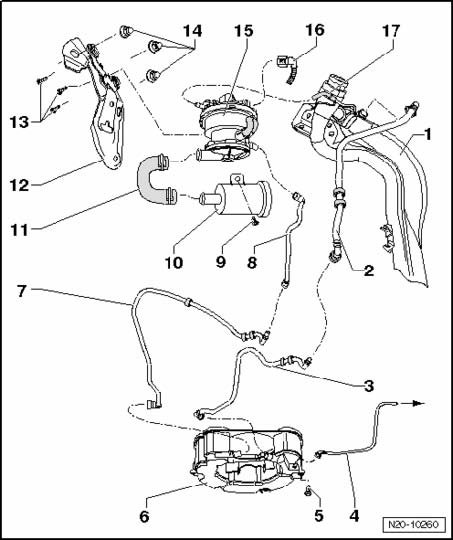

EVAP System Component Overview (GTI)







1 - Fuel tank
2 - Vent line
- Behind wheel housing liner
3 - Vent line
- On underbody
4 - Vent line
- To evaporative emission (EVAP) canister purge regulator valve N80
- To remove, press release button
5 - 8 Nm
6 - EVAP canister
- Component location: Bottom of spare wheel well
7 - Connecting line
- On underbody
8 - Connecting line
- Behind wheel housing liner
9 - 3 Nm
10 - Air filter housing
- For Leak Detection Pump (LDP) V144
11 - Connecting hose
12 - Bracket
- For Leak Detection Pump (LDP) V144
13 - 2 Nm
14 - 6 Nm
15 - Leak Detection Pump (LDP) V144
- Component location: Under wheel housing liner in right rear wheel housing
- Checking fuel supply system for leaks.
16 - Connector
17 - Vacuum line
- From intake manifold
