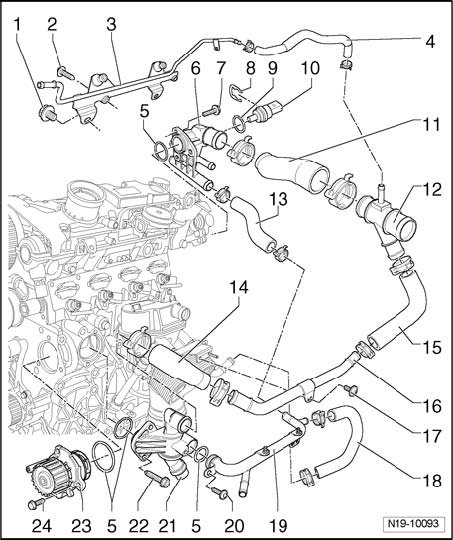

Cooling System Components Assembly Overview, Engine Side

Cooling System Components Assembly Overview, Engine Side





1 - Bolt
^ 40 Nm

2 - Bolt
^ 30 Nm

3 - Coolant line
4 - Connecting hose
5 - O-ring
^ Replace

6 - Connecting piece
7 - 10 Nm
8 - Retaining clip
9 - O-ring
^ Replace

10 - Engine Coolant Temperature (ECT) sensor G62
11 - Connecting hose
12 - Connecting piece
13 - Connecting hose
14 - Connecting hose
15 - Connecting hose
16 - Coolant line
17 - 5 Nm
18 - Connecting hose
19 - Coolant line
20 - 5 Nm
21 - Coolant thermostat housing
^ With coolant thermostat
^ Starts to open 87° C

22 - 15 Nm
23 - Coolant pump
24 - 15 Nm
