Clutch, Removing

Clutch, Removing

To remove and install the clutch, the transmission must be secured in a vertical position on the assembly stand.

- Remove the clutch cover. Refer to => [ Clutch Cover, Removing ] Clutch Cover, Removing.

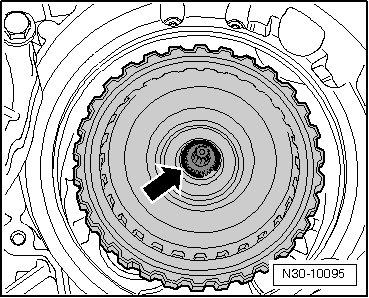

- Remove the circlip - arrow -.






For your information: This circlip must be replaced and re-measured during installation.

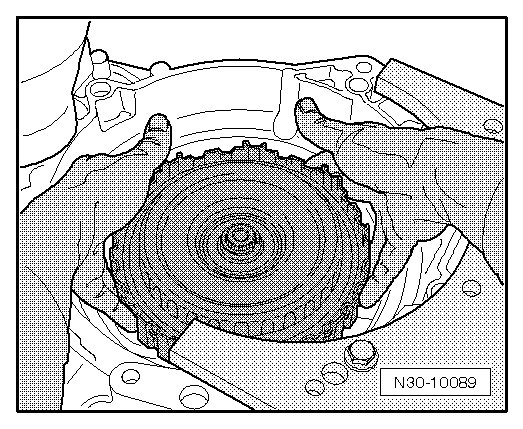

Remove the clutch carefully. Make sure that the cover or other parts of the clutch do not fall out; for this reason, do not turn over the clutch!

If this happens, refer to => [ Special Care: ] Clutch, Installing and Adjusting.

- Remove the clutch.






- Remove the pump shaft - A -.






- The pump shaft will first be used after the installation of the new clutch. Lay the shaft down until then.
