Front Suspension (FWD)

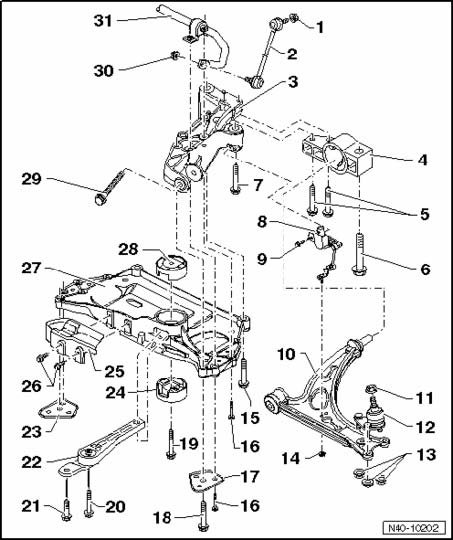

Subframe, Stabilizer Bar, Control Arm Assembly Overview (Eos)
CAUTION!
^ Welding and straightening work on supporting or wheel carrying components of suspension is not permitted.
^ Always replace self-locking nuts.
^ Always replace corroded bolts/nuts.
1 - Nut
2 - Coupling rod
3 - Bracket
4 - Mounting bracket
5 - Bolt
6 - Bolt
7 - Bolt
8 - Left Front Level Control System Sensor G78
9 - Bolt
10 - Control arm
11 - Nut
12 - Ball joint
13 - Nut
14 - Nut
15 - Bolt
16 - Bolt
17 - Retainer plate
18 - Bolt
19 - Bolt
20 - Bolt
21 - Bolt
22 - Pendulum support
23 - Retainer plate
24 - Lower bonded rubber bushing for pendulum support
25 - Shield
26 - Bolt
27 - Subframe
28 - Upper bonded rubber bushing for pendulum support
29 - Bolt
30 - Nut
31 - Stabilizer bar
