HID Headlamps and Cornering Lamp (AFS) Overview

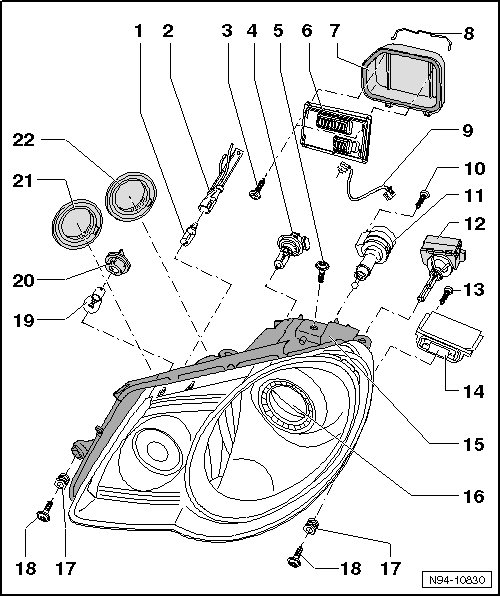

HID Headlamps and Cornering Lamp (AFS) Overview
1 Left Parking Lamp (M1) and Right Parking Lamp (M3)
• Lamp 12V, BLUE W 5 W
• Replacing, refer to => [ Parking Lamps Bulbs ] Parking Lamps Bulbs.
2 Lamp Socket
• For parking lamp.
• With the wiring harness
3 Left High-intensity Gas Discharge Lamp Control Module (J343) and Right High-intensity Gas Discharge Lamp Control Module (J344) Mounting Bolts
• 1 Nm
• Tightening specifications overview, refer to => [ Headlamp, Tightening Specifications ] Headlamp, Tightening Specifications.
4 Left Cornering Lamp (L148) or Right Cornering Lamp (L149)
• Is also called static cornering lamp.
• Provides better illumination on tight curves (curve radius < 500 m) or when turning at vehicle speeds under 50 km/h.
• H8 12V, 35 W bulb
• Replacing, refer to => [ Cornering Light Bulb ] Cornering Light Bulb.
• Checking, refer to => [ Vehicle Electrical System Control Module (J519), Through 05.2009 ] Vehicle Electrical System Control Module (J519), Through 05.2009.
5 Headlamp Housing Mounting Bolt
• 2.5 Nm
• Manufactured by Valeo.
• Tightening specifications overview, refer to => [ Headlamp, Tightening Specifications ] Headlamp, Tightening Specifications.
6 Left Headlamp Power Output Stage (J667) or Right Headlamp Power Output Stage (J668)
• Is attached to the housing cover => [ (Item 7) Housing Cover ].
• After installing a new headlamp power output stage, Headlamp Range/Cornering Lamp Control Module (J745) must be coded. Refer to => [ Headlamp Power Output Stages, Coding ] Headlamp Power Output Stages, Coding and then basic headlamp setting performed.
7 Housing Cover
• The housing cover also serves to secure the headlamp power output module.
• For Left High Intensity Gas Discharge (HID) Lamp (L13) or Right High Intensity Gas Discharge (HID) Lamp (L14) (Bi-Xenon).
• For Left Headlamp Beam Adjustment Motor (V48) and Right Headlamp Beam Adjustment Motor (V49).
• With seal.
- Check the seal for damage.
- Replace the housing cover if damaged.
8 Retaining Bracket
• For housing cover => [ (Item 7) Housing Cover ].
9 Wire For Gas-Discharge Lamp
• Between Left High Intensity Gas Discharge (HID) Lamp (L13) or Right High Intensity Gas Discharge (HID) Lamp (L14) and Left High-intensity Gas Discharge Lamp Control Module (J343) or Right High-intensity Gas Discharge Lamp Control Module (J344).
10 Screws
• For Left Headlamp Beam Adjustment Motor (V48) and Right Headlamp Beam Adjustment Motor (V49).
• 1 Nm
• Manufactured by Valeo.
• Tightening specifications overview, refer to => [ Headlamp, Tightening Specifications ] Headlamp, Tightening Specifications.
11 Left Headlamp Beam Adjustment Motor (V48) and Right Headlamp Beam Adjustment Motor (V49)
• Headlamp manufacturer Valeo.
• Removing and installing, refer to => [ Headlamp Range Control Positioning Motor ] Headlamp Range Control Positioning Motor.
• Checking, refer to => [ Headlamp Range Control Positioning Motor, Checking ] Testing and Inspection.
12 Left High Intensity Gas Discharge (HID) Lamp (L13) or Right High Intensity Gas Discharge (HID) Lamp (L14) (Bi-Xenon)
• Type D1S, 35 W
• Replacing, refer to => [ Gas Discharge Lamps ] Gas Discharge Lamps.
• Checking, refer to => [ Vehicle Electrical System Control Module (J519), Through 05.2009 ] Vehicle Electrical System Control Module (J519), Through 05.2009.
• Observe safety notes, refer to => [ HID Headlamps, Usage and Safety Precautions ] Service Precautions.
13 Screws
• For Left Headlamp Power Output Stage (J667) or Right Headlamp Power Output Stage (J668).
• 1 Nm
• Manufactured by Valeo.
14 Left High-intensity Gas Discharge Lamp Control Module (J343) and Right High-intensity Gas Discharge Lamp Control Module (J344)
• Removing and installing, refer to => [ Headlamp Control Module ] Headlamp Control Module.
15 Headlamp Housing
• Removing and installing, refer to => [ Headlamp Housing ] Headlamp Housing.
• Correcting installation position of headlamp, refer to => [ Headlamps, Correcting Installation Position ] Headlamps, Correcting Installation Position.
• Servicing headlamp securing straps, refer to => [ Headlamp Mounting Tabs, Repairing ] Headlamp Mounting Tabs, Repairing.
16 Bi-Xenon DBL Module
Dynamic bending light module makes it possible to swivel the low and high beams at vehicle speeds above 10km/h and a steering angle.
The following components are contained in the module:
• Left Dynamic Cornering Light Motor (V318) or Right Dynamic Cornering Light Motor (V319). Refer to => [ HID Dynamic Cornering Lamp Motor ] HID Dynamic Cornering Lamp Motor.
• Carries out horizontal DBL module swiveling
• Left low beam headlamp reflector motor (V294) or Right low beam headlamp reflector motor (V295). Refer to => [ HID Low Beam Reflector Motor ] HID Low Beam Reflector Motor.
• This electro-mechanical adjuster opens the dimmed region of the low beam, for instance when the high beam function is activated, and thus a high beam light emission results.
• Left Swivel Module Position Sensor (G474) or Right Swivel Module Position Sensor (G475). Refer to => [ HID Swivel Module Position Sensor ] HID Swivel Module Position Sensor.
• Detects DBL module swiveling angle.
17 Adjustment Bushings
• Correcting installation position of headlamp, refer to => [ Headlamps, Correcting Installation Position ] Headlamps, Correcting Installation Position.
18 Lower Mounting Bolts
• 3.5 Nm
• Tightening specifications overview, refer to => [ Headlamp, Tightening Specifications ] Headlamp, Tightening Specifications.
19 Left Front Turn Signal Light (M5) and Right Front Turn Signal Light (M7)
• 12V, P 27/7 bulb, with designation 3457 AK
• Replacing, refer to => [ Front Turn Signal Bulbs ] Front Turn Signal Bulbs.
20 Lamp Socket
• For turn signal light.
21 Housing Cover
• Left Front Turn Signal Light (M5) and Right Front Turn Signal Light (M7).
• Left Parking Lamp (M1) and Right Parking Lamp (M3).
• With seal.
- Check the seal for damage.
- Replace the housing cover if damaged.
22 Housing Cover
• For Left Cornering Lamp (L148) or Right Cornering Lamp (L149).
• With seal
- Check the seal for damage.
- Replace the housing cover if damaged.
