CSC Roof Assembly Overview

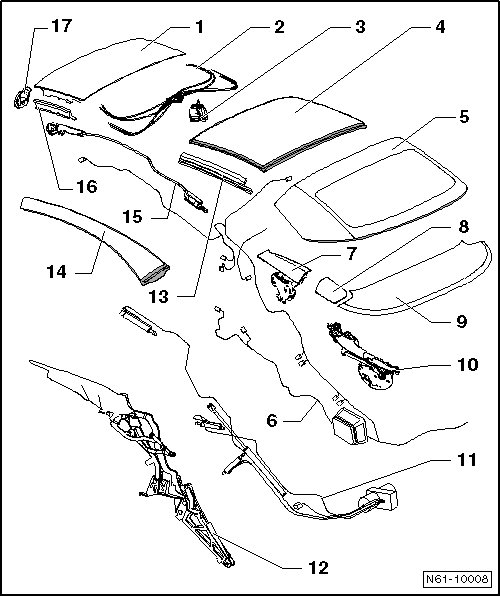

CSC Roof Assembly Overview






1 Glass Panel

• Removing, refer to => [ Glass Panel, Removing ] Glass Panel, Removing

• Installing, refer to => [ Glass Panel, Installing ] Glass Panel, Installing

2 Guide tubes

• For glass panel and sun shade cables.

3 Electric drive motor

4 Roof center section

• Removing, refer to => [ Roof Center Section ] Roof Center Section

• Installing, refer to => [ Roof Center Section, Installing ] Roof Center Section, Installing

5 Rear window frame

• Removing, refer to => [ Rear Window Frame, Removing ] Rear Window Frame, Removing

• Installing, refer to => [ Rear Window Frame, Installing ] Rear Window Frame, Installing

6 Wiring harness

• For sensor in roof.

7 Roof pillar flaps

• Removing and Installing

8 Cover flaps

• Removing, refer to => [ Cover Flaps, Removing ] Cover Flaps, Removing

• Installing, refer to => [ Cover Flaps, Installing ] Cover Flaps, Installing

9 Rear Shelf

• Removing, refer to => [ Rear Shelf, Removing ] Rear Shelf, Removing

• Installing, refer to => [ Rear Shelf, Installing ] Rear Shelf, Installing

10 Mounting carrier

• For locking mechanisms, rear shelf and rear lid hinge.

11 Hydraulic lines

12 Main hinge

• The main hinge cannot be replaced separately.

13 Rear guide hinge

• Secured on main hinge and roof center section.

• The rear guide rail cannot be replaced.

14 Roof Pillar

• Removing, refer to => [ Roof Pillar, Removing ] Roof Pillar, Removing

• Installing, refer to => [ Roof Pillar, Installing ] Roof Pillar, Installing

15 Locking lever

16 Front guide hinge

• Secured to roof pillar, tips sideways with it.

17 Locking bracket
