Lock Carrier Air Ducts Assembly Overview

Lock Carrier Air Ducts Assembly Overview

• The air ducts may differ slightly depending on the model.

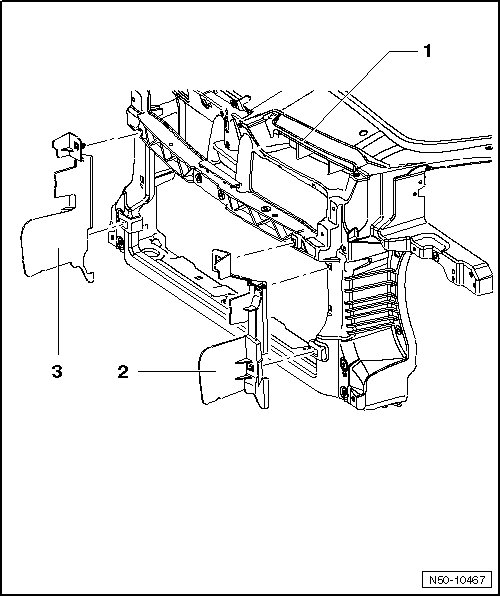

1 Lock carrier

2 Left air guide

• Clipped in at top and bottom of lock carrier

3 Right air guide

• Clipped in at top and bottom of lock carrier
