Hood Hinge: Service and Repair

Hood Hinge

• Removing and installing the right hinge is described. Removing and installing the left hinge is identical.

Removing

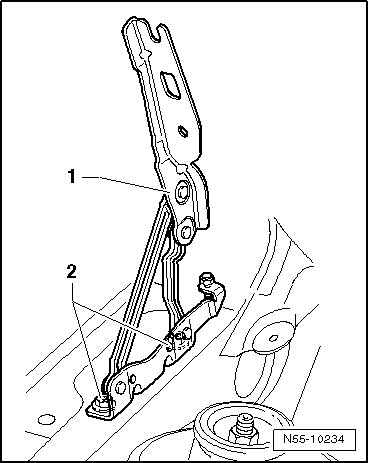

- Removing hinge - 1 -






- Remove the bolts - 2 - and remove the hinge - 1 -.

Installation

Install the hinge - 1 - in reverse order of removal.






- Bolt - 2 - tightening specification: 22 Nm
