Home >> Volkswagen >> 2008 >> Eos (1F7) L4-2.0L Turbo (CCTA) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Locations >> Component Locations >> Radio-Navigation System and Radio-Navigation System With Dynaudio Sound, Component Overview

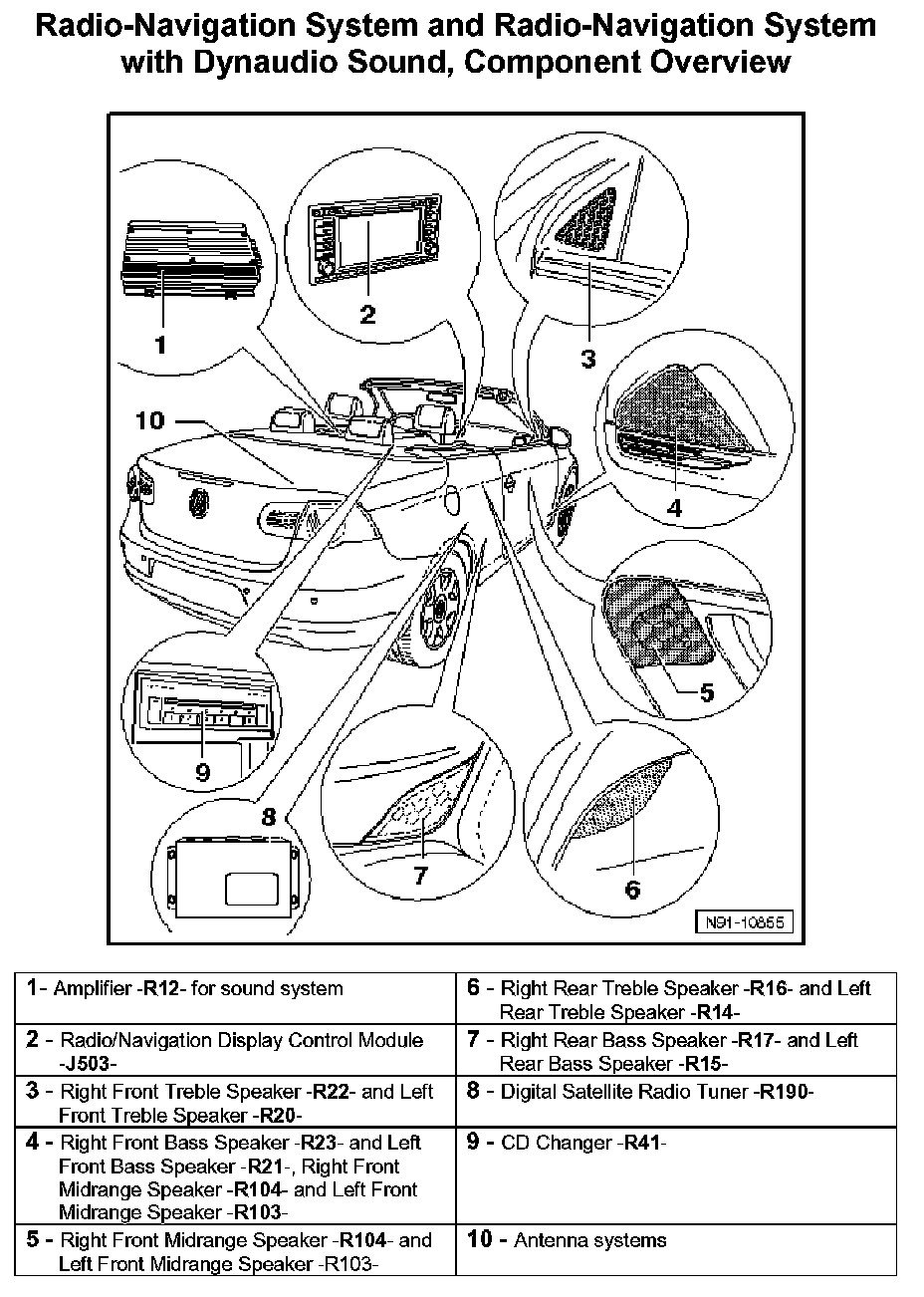

Radio-Navigation System and Radio-Navigation System With Dynaudio Sound, Component Overview
