Diagram 94/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Antennas





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

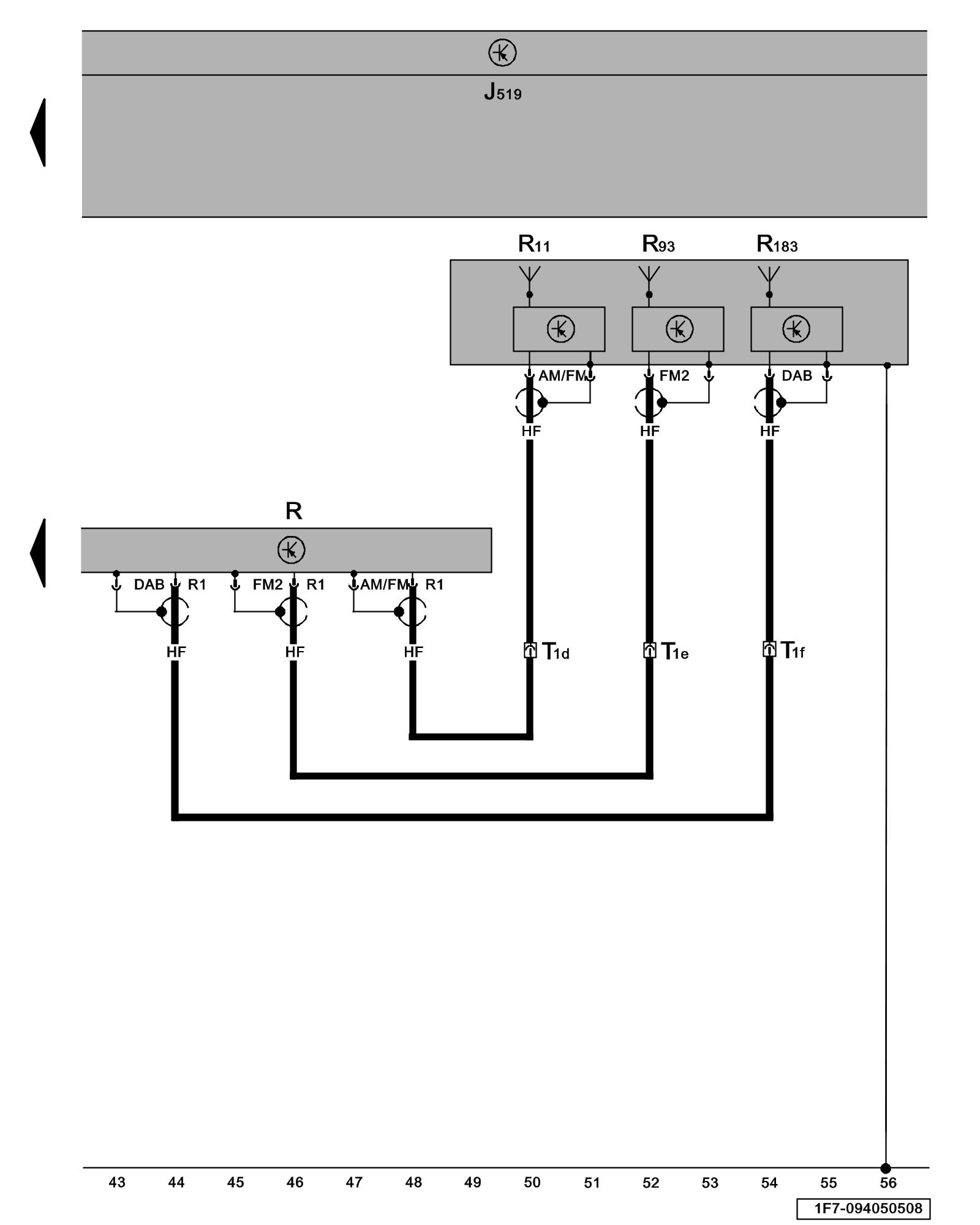

J519 - Vehicle Electrical System Control Module Overview of Control Modules

R - Radio Locations

R1 - Antenna Connection

R11 - Antenna Antenna Systems Overview

R93 - Radio Antenna 2 Antenna Systems Overview

R183 - Digital Radio Antenna

T1d - Single Connector, near right taillamp Overview of Connector Stations and Connectors

T1e - Single Connector, near right taillamp Overview of Connector Stations and Connectors

T1f - Single Connector, near right taillamp Overview of Connector Stations and Connectors

Previous Diagram 94/4 (Tracks 29-42)
