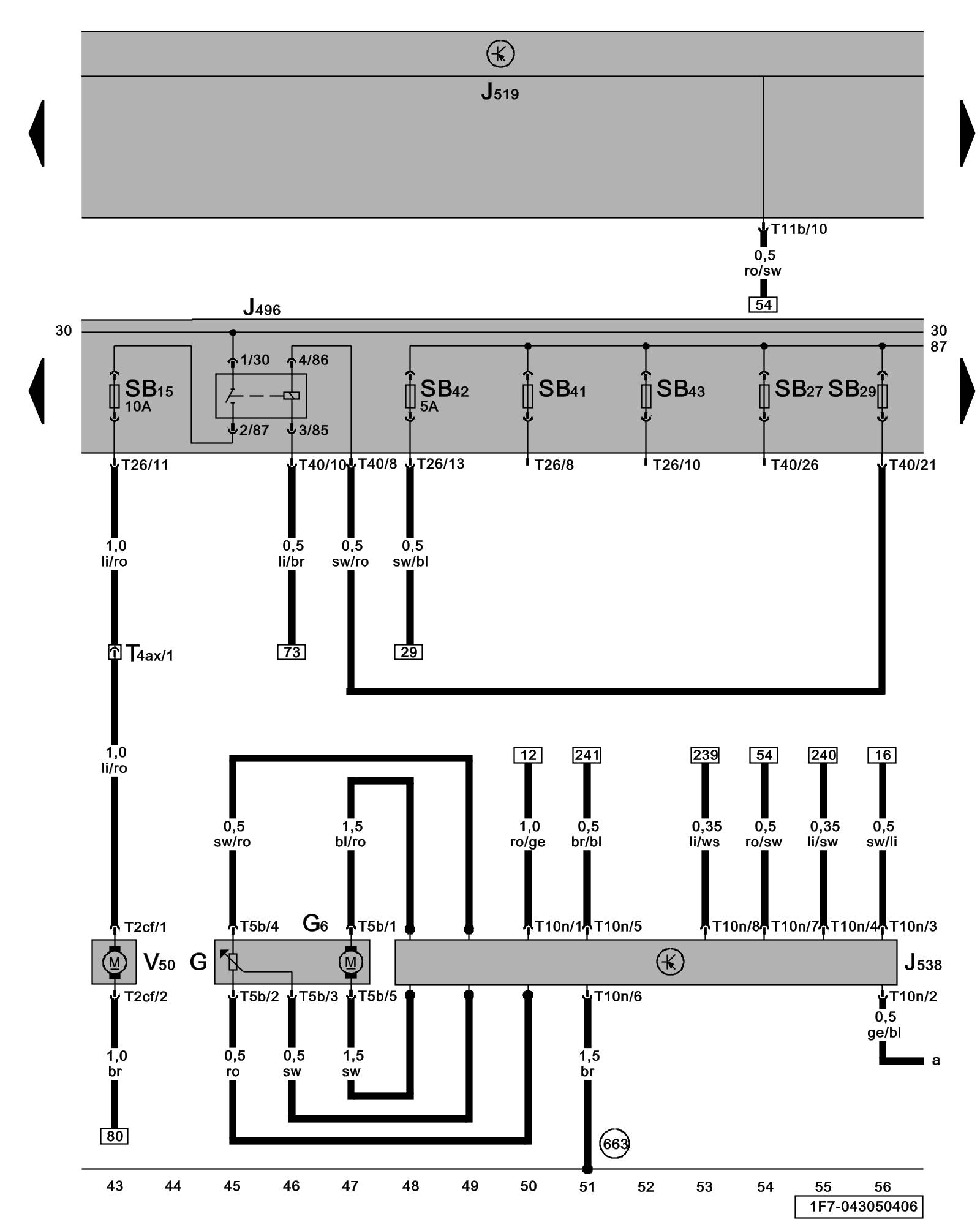

Diagram 63/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuel Pump (FP) Control Module, Engine Coolant Pump Relay, Coolant Pump, Fuel Level Sensor, Fuel Pump (FP)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G - Fuel Level Sensor Locations

G6 - Transfer Fuel Pump (FP) Locations

J496 - Auxiliary Engine Coolant (EC) Pump Relay Overview of Relay Carrier

J519 - Vehicle Electrical System Control Module Overview of Control Modules

J538 - Fuel Pump (FP) Control Module Overview of Control Modules

SB15 - Fuse 15 (on fuse panel B) Overview of Fuses

SB27 - Fuse 27 (on fuse panel B) Overview of Fuses

SB29 - Fuse 29 (on fuse panel B) Overview of Fuses

SB41 - Fuse 41 (on fuse panel B) Overview of Fuses

SB42 - Fuse 42 (on fuse panel B) Overview of Fuses

SB43 - Fuse 43 (on fuse panel B) Overview of Fuses

T2cf - Double Connector

T4ax - 4-Pin Connector, in engine compartment, left

T5b - 5-Pin Connector

T10n - 10-Pin Connector

T11b - 11-Pin Connector

T26 - 26-Pin Connector

T40 - 40-Pin Connector

V50 - Coolant Pump

(663) - Ground Connection (on right rear C-pillar) Overview of Ground Connections In Luggage Compartment
