Diagram 63/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

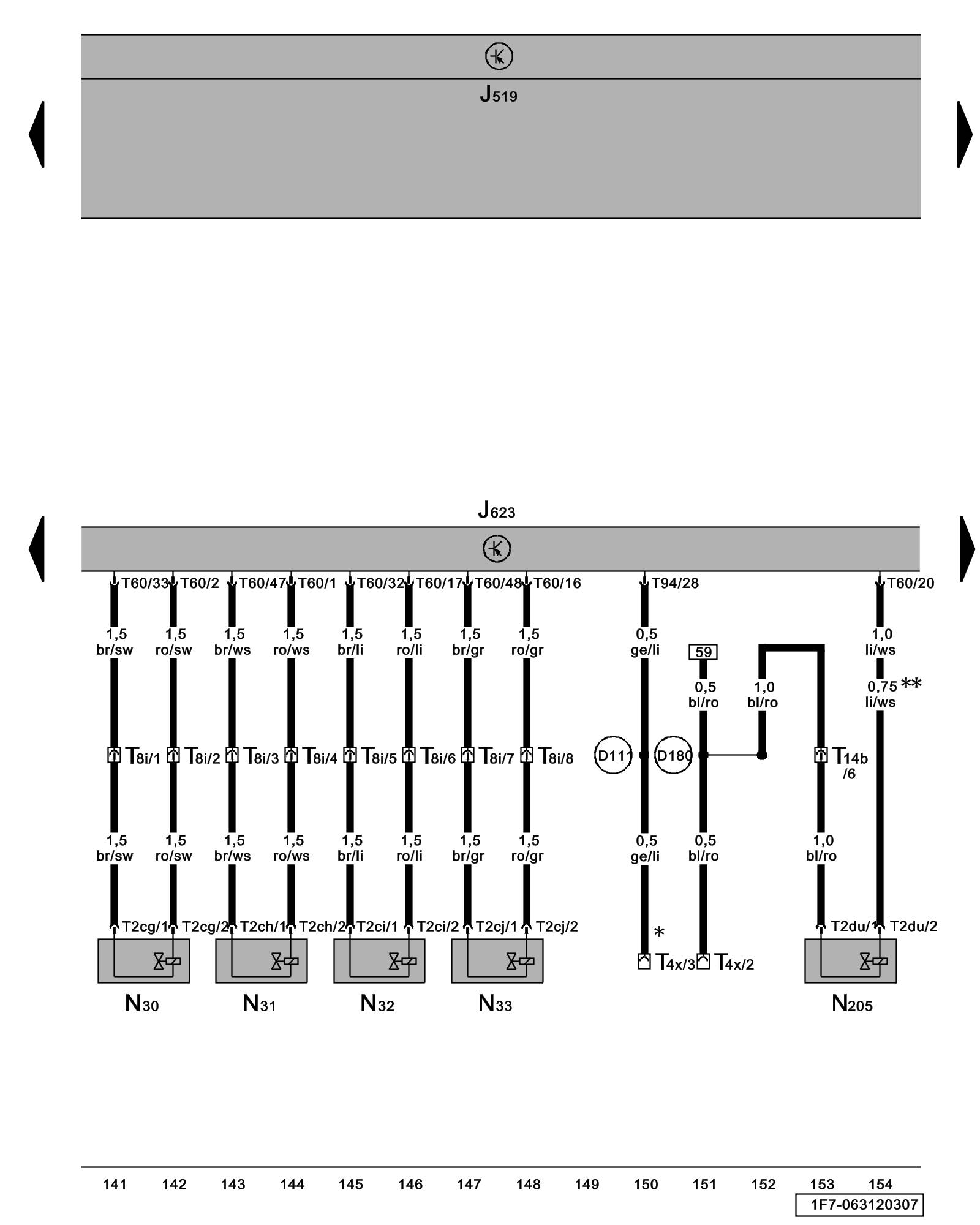

Engine Control Module (ECM), Fuel Injectors, Camshaft Adjustment Valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Overview of Control Modules

J623 - Engine Control Module (ECM), in plenum chamber, center Overview of Control Modules

N30 - Cylinder 1 Fuel Injector Locations

N31 - Cylinder 2 Fuel Injector Locations

N32 - Cylinder 3 Fuel Injector Locations

N33 - Cylinder 4 Fuel Injector Locations

N205 - Camshaft Adjustment Valve 1 Locations

T2cg - Double Connector

T2ch - Double Connector

T2ci - Double Connector

T2cj - Double Connector

T2du - Double Connector

T4x - 4-Pin Connector, on coolant fan, bottom left

T8i - 8-Pin Connector, on engine, front

T14b - 14-Pin Connector, near battery Overview of Connector Stations and Connectors

T60 - 60-Pin Connector

T94 - 94-Pin Connector

(D111) - Connection 9 (in engine compartment wiring harness)

(D180) - Connection (87a) (in engine compartment wiring harness)

* - Coolant Fan Connector

** - From May 2007
