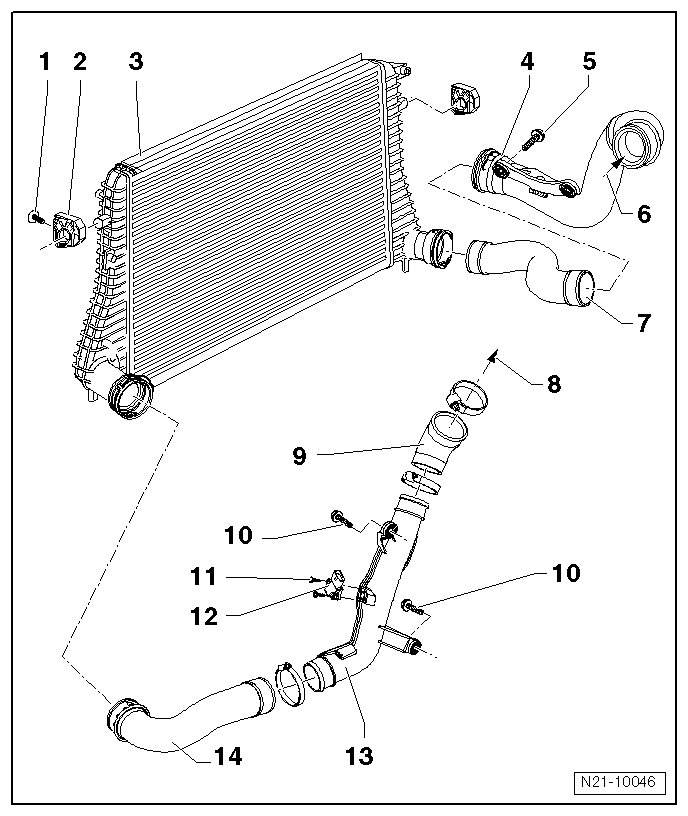

Charge Air Cooler Overview

Charge Air Cooler Overview






1 Bolt

• 5 Nm

2 Mount

• For the charge air cooler.

3 Charge Air Cooler

• Removing and installing, refer to one of the following:

• Passat, refer to => [ Charge Air Cooler ] Service and Repair.

• Eos, refer to => [ Charge Air Cooler ] Service and Repair.

4 Charge air Pipe

5 Bolt

• 8 Nm

6 from the Turbocharger

7 Charge Air Hose

• Installing, refer to => [ Charge Air Hose, Installing ] Charge Air Hose, Installing.

8 to the Throttle Valve Control Module (J338)

9 Charge Air Hose

10 Bolt

• 10 Nm

11 Bolt

• 5 Nm

12 Charge Air Pressure Sensor (G31)

13 Charge Air Pipe

14 Charge Air Hose

• Installing, refer to => [ Charge Air Hose, Installing ] Charge Air Hose, Installing.
