Muffler: Service and Repair

Center and Rear Muffler, Separating

• A separating point has been provided in the connecting pipe for removing, installing and individual replacement of the center or rear muffler.

• The separating point is marked by depressions around the circumference of the exhaust pipe.

Special tools, testers and auxiliary items required

• Pneumatic Jig Saw (V.A.G 1523 A)

or

• Chain Pipe Cutter (VAS 6254)


To prevent injuries from metal shavings, wear protective goggles and protective clothing.

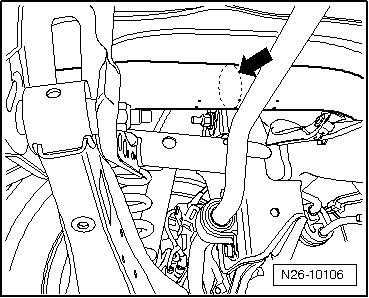

- Cut the exhaust pipe at the separation point - arrow -, for example, using the pneumatic jig saw (V.A.G 1523 A) at a right angle.






- Position the clamping sleeve at the side marks when installing.

- When installing the double clamp, ensure that the bolt end - arrow - does not project over the lower edge of double clamp.






- Align the exhaust system so that the distance - a - is equal on the right and left sides.
