Toothed Belt, without a Divided Toothed Belt Guard

Toothed Belt, without a Divided Toothed Belt Guard

CAUTION! INCORRECT REMOVAL OR INSTALLATION OF THE TIMING BELT CAN RESULT IN DAMAGE TO INTERNAL ENGINE COMPONENTS.

• Vehicles from 01.06 have a new toothed belt guard. Identification: The upper toothed belt guard does not have a cover => [ (Item 25) Cover for the Toothed Belt Guard ] Engine Overviews and the guard is divided in the engine mount bracket area. Toothed belt, with a divided toothed belt guard removing and installing. Refer to => [ Toothed Belt, with a Divided Toothed Belt Guard ] Toothed Belt, with a Divided Toothed Belt Guard.



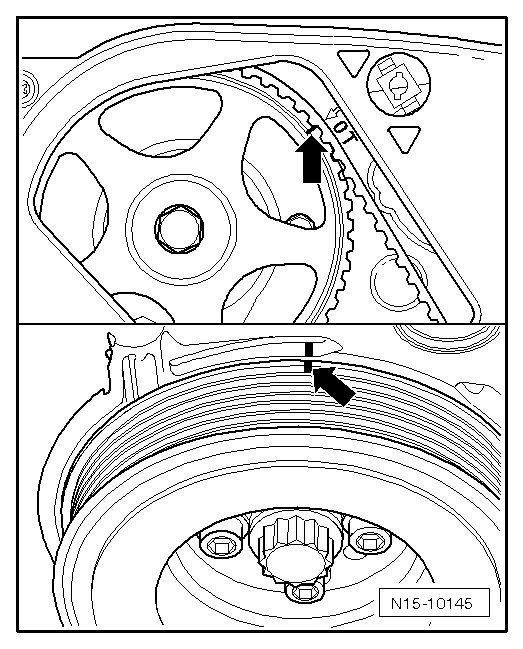

- Set the crankshaft and camshaft to TDC for cylinder 1 - arrows -.






- Route the toothed belt in this sequence: belt tensioner, camshaft sprocket, coolant pump and lastly under the idler pulley - arrow -.
