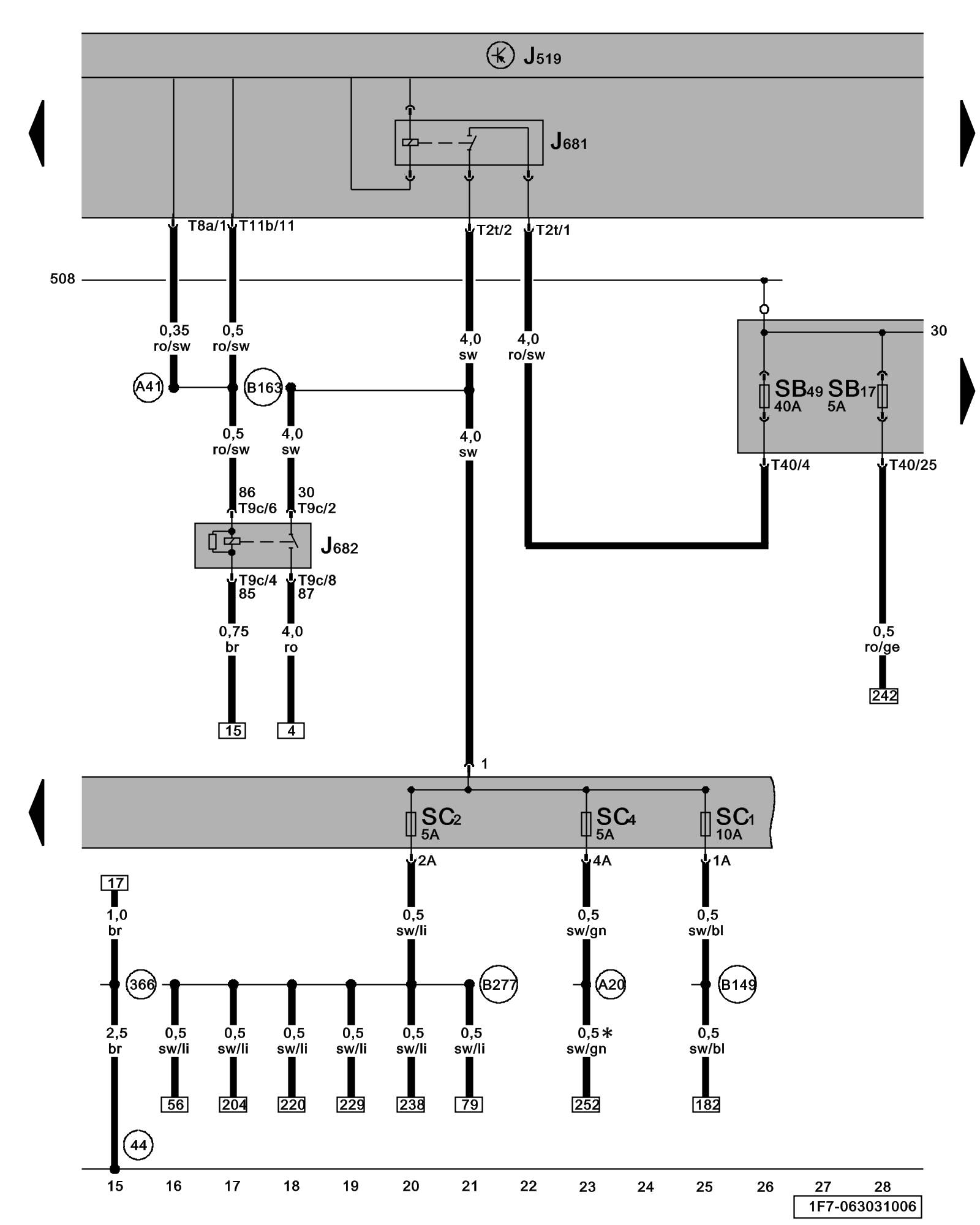

Diagram 63/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power Supply Relay (terminal 50), Power Supply Relay 2 (terminal 15), Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Overview of Control Modules

J681 - Power Supply Relay 2 (terminal 15) Overview of Relay Carrier

J682 - Power Supply Relay (terminal 50) Overview of Relay Carrier

SB17 - Fuse 17 (on fuse panel B) Overview of Fuses

SB49 - Fuse 49 (on fuse panel B) Overview of Fuses

SC1 - Fuse 1 (on fuse panel C) Overview of Fuses

SC2 - Fuse 2 (on fuse panel C) Overview of Fuses

SC4 - Fuse 4 (on fuse panel C) Overview of Fuses

T2t - Double Connector

T8a - 8-Pin Connector

T9c - 9-Pin Connector

T11b - 11-Pin Connector

T40 - 40-Pin Connector

(44) - Ground Connection (on left lower A-pillar) Overview of Ground Connections In Interior

(366) - Ground Connection 1 (in main wiring harness)

(A20) - Plus Connection (15a) (in instrument panel wiring harness)

(A41) - Plus Connection (50) (in instrument panel wiring harness)

(B149) - Plus Connection 2 (15a) (in interior wiring harness)

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B277) - Plus Connection 1 (15a) (in main wiring harness)

* - Models with extended service intervals
