License Plate Holder, Removing and Installing

License Plate Holder

Removing

NOTE: The license plate holders are different sizes depending on market.

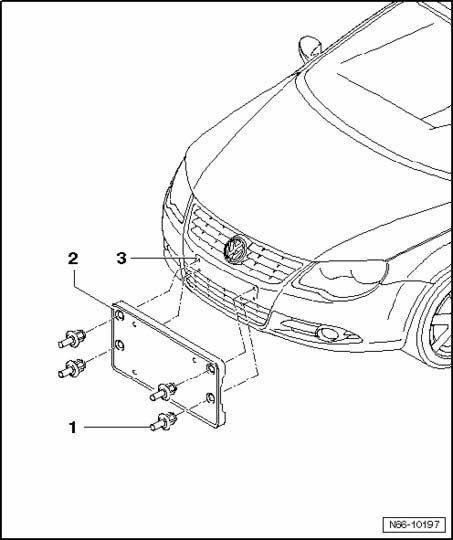

- Remove clips - 1 - and remove license plate holder - 2 - from radiator grille - 3 -.







Installing

With holes present







- Place license plate holder - 2 - on radiator grille - 3 - and press in clips - 1 -.

With no holes present
- Hold license plate holder - 2 - on bumper and center holder - 2 - to radiator grille - 3 -.
- Mark attachment points and carefully drill holes with an 8 mm drill.
- Place license plate holder - 2 - on radiator grille - 3 - and press in clips - 1 -.
