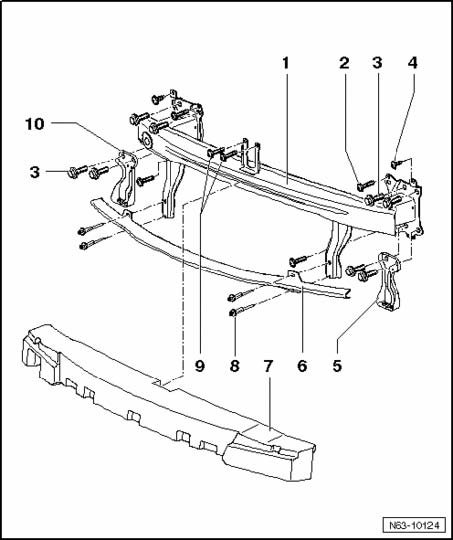

Front Bumper Carrier Assembly Overview, CAN

Front Bumper Carrier Assembly Overview, CAN







1 - Front bumper carrier
2 - Screw
- 2 per side
- Tightening torque: 8 Nm

3 - Screw
- 4 per side
- Tightening torque: 60 Nm

4 - Screw
- Left and right
- Tightening torque: 3.5 Nm

5 - Left retainer
- Nose insulation bracket

6 - Cross member
- Pedestrian protection

7 - Foam piece
- Self-adhesive

8 - Pop rivet
- 2 per side

9 - Screw
- Qty. 2
- Tightening torque: 8 Nm

10 - Right retainer
- Nose insulation bracket
