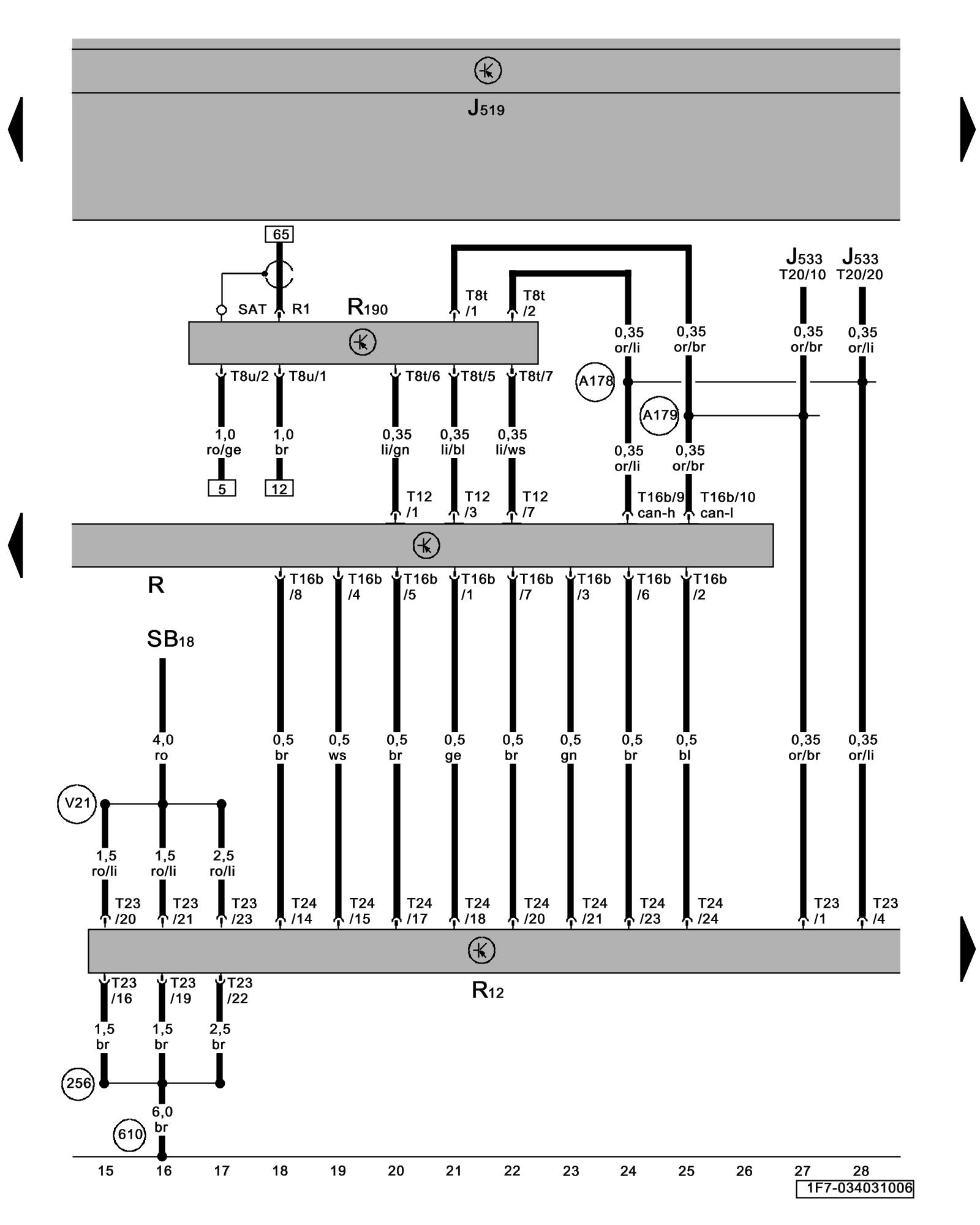

Diagram 34/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power Supply Amplifier, Radio, Digital Satellite Radio Tuner, Antenna Connection





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Overview of Control Modules

J533 - Data Bus On Board Diagnostic Interface Overview of Control Modules

R - Radio Locations

R1 - Antenna Connection

R12 - Amplifier Locations

R190 - Digital Satellite Radio Tuner Locations

SB18 - Fuse 18 (on fuse panel B) Overview of Fuses

T8t - 8-Pin Connector

T8u - 8-Pin Connector

T12 - 12-Pin Connector

T16b - 16-Pin Connector

T20 - 20-Pin Connector

T23 - 23-Pin Connector

T24 - 24-Pin Connector

(256) - Ground Connection 2 (in radio wiring harness)

(610) - Ground Connection (Audio) (under center console, front) Overview of Ground Connections In Interior

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Low-bus Connection (in instrument panel wiring harness)

(V21) - Plus Connection (30) (in wiring Radio - Amplifier wiring harness)
