A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>

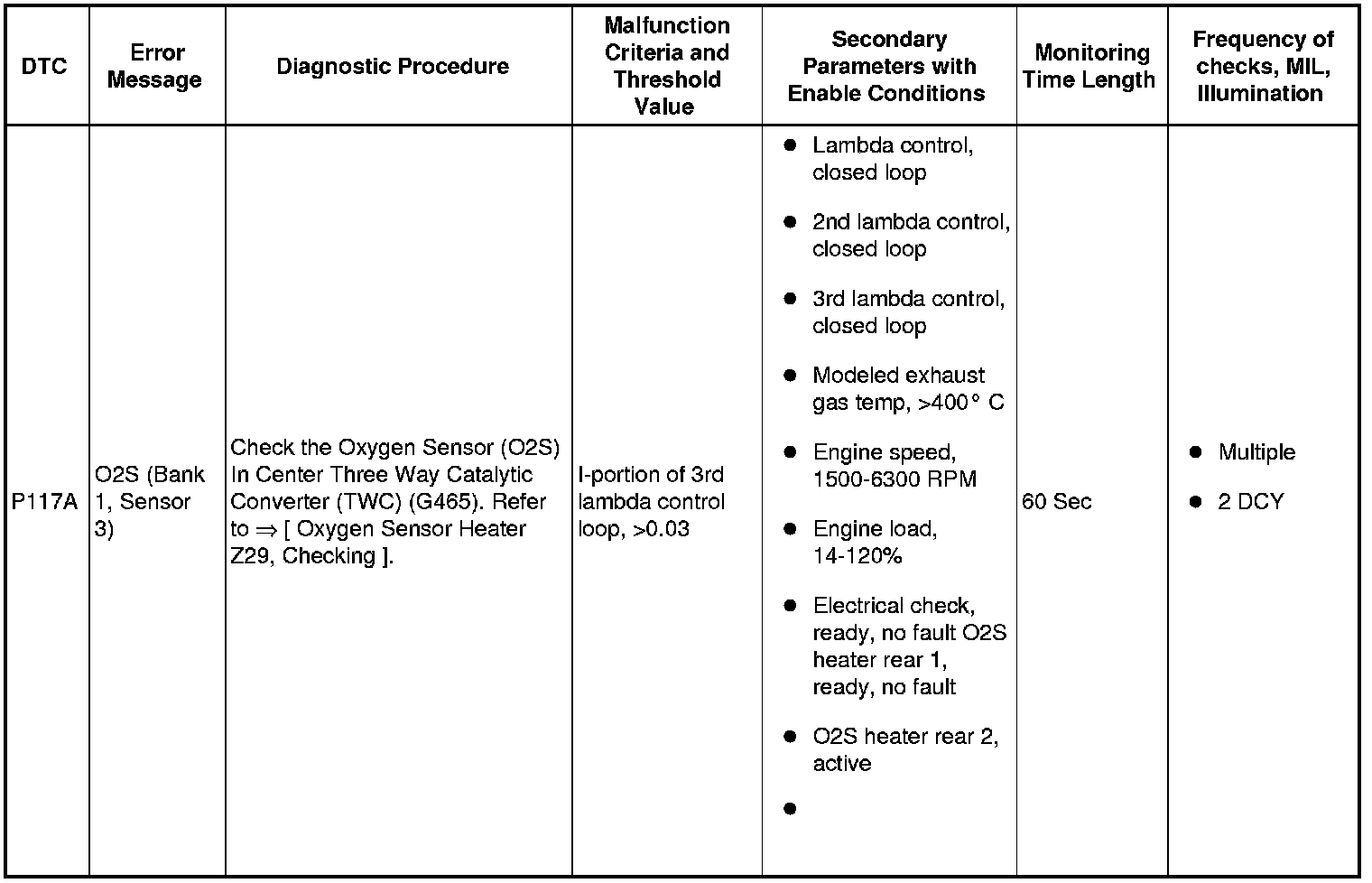

P117A
P117A
SAE P1xxx Diagnostic Trouble Codes
For additional monitor strategy information. Refer to the => Bosch Motronic MED 7.1.1 OBD System Strategy document.
Exhaust, Emissions Controls
