Wipers/Washers - Rain Sensor Removal Precautions
92 08 01April 10, 2008
2017605

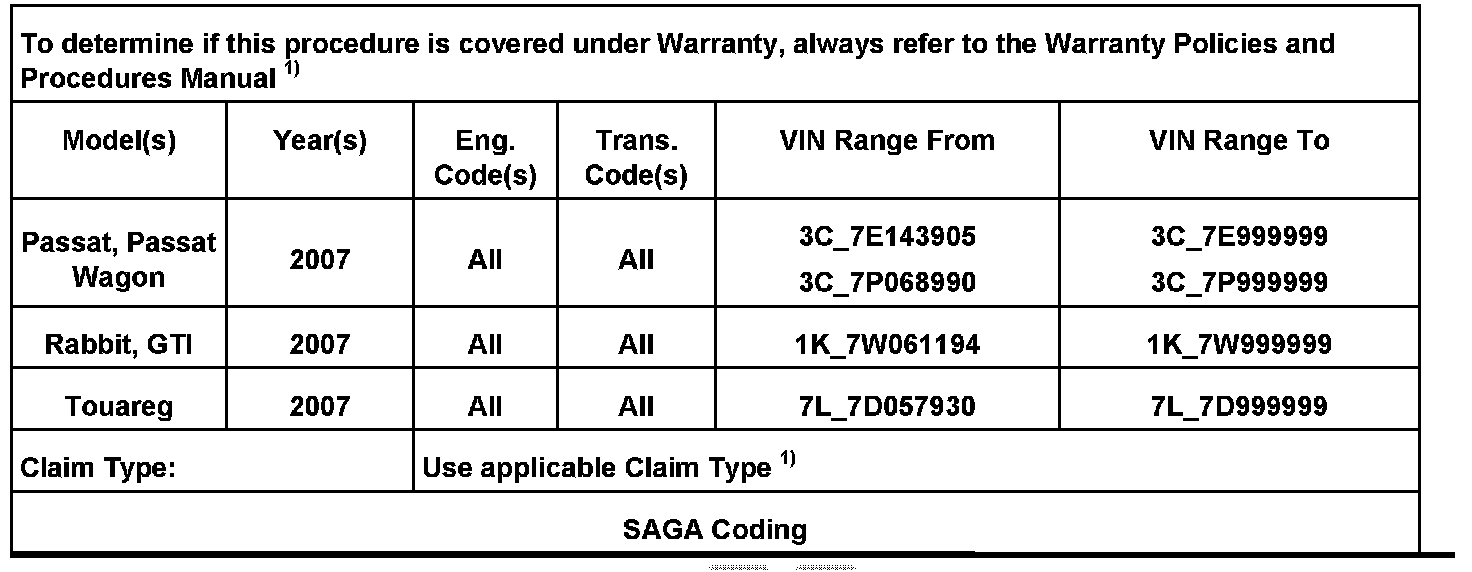

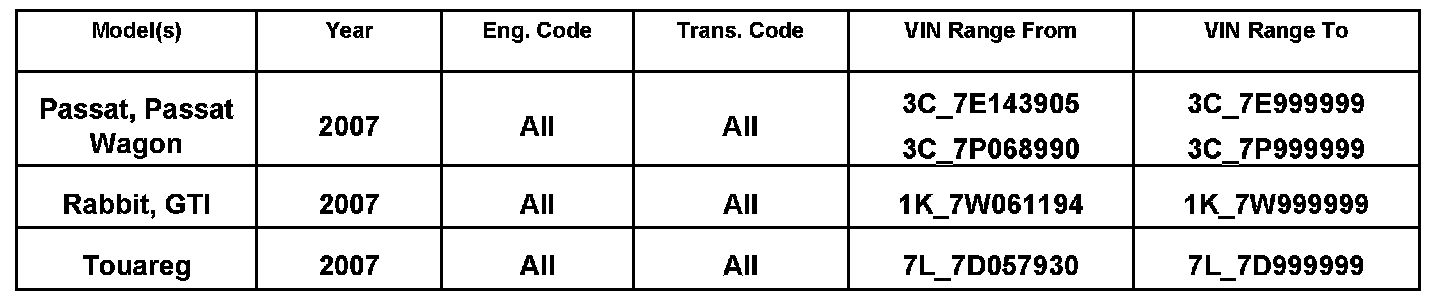

Affected Vehicles
Condition
Rain Sensor Damaged during Removal
Damage to rain sensor during windshield replacement.
Note:
The condition as described DOES NOT compromise manual windshield wiper operation.
Technical Background
Adhering gel pad used to attach sensor to windshield is strong, making sensor difficult to remove without damage.
Production Solution
Production changed with MY 2008.
Service
Tip:
If a replacement windshield is installed due to manufacturer defect, outside influence (stone chip) or collision repair, and the sensor IS NOT the cause of complaint, the rain sensor can be claimed as warranty repair.
Note:
Replacement of the rain sensor during windshield replacement is a ONE TIME customer courtesy.
Example:
The windshield has to be replaced due to stone chip damage. During windshield replacement process the original rain sensor needs to be adapted to new windshield. Removing the rain sensor from the original windshield causes the sensor to become inoperative or physically damaged.
Note:
In addition to claim comment per warranty table, enter production date of sensor in SAGA 2 comments box.
Example:

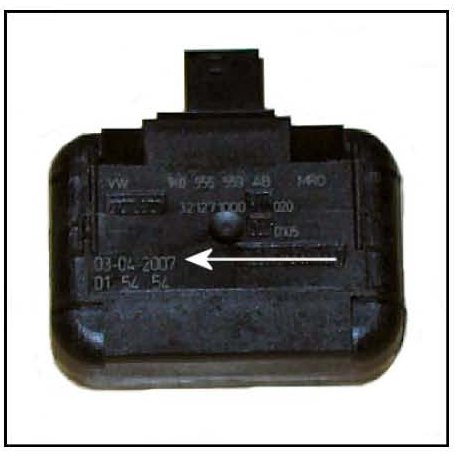

Date on rain sensor 03-04-2007 (white arrow).

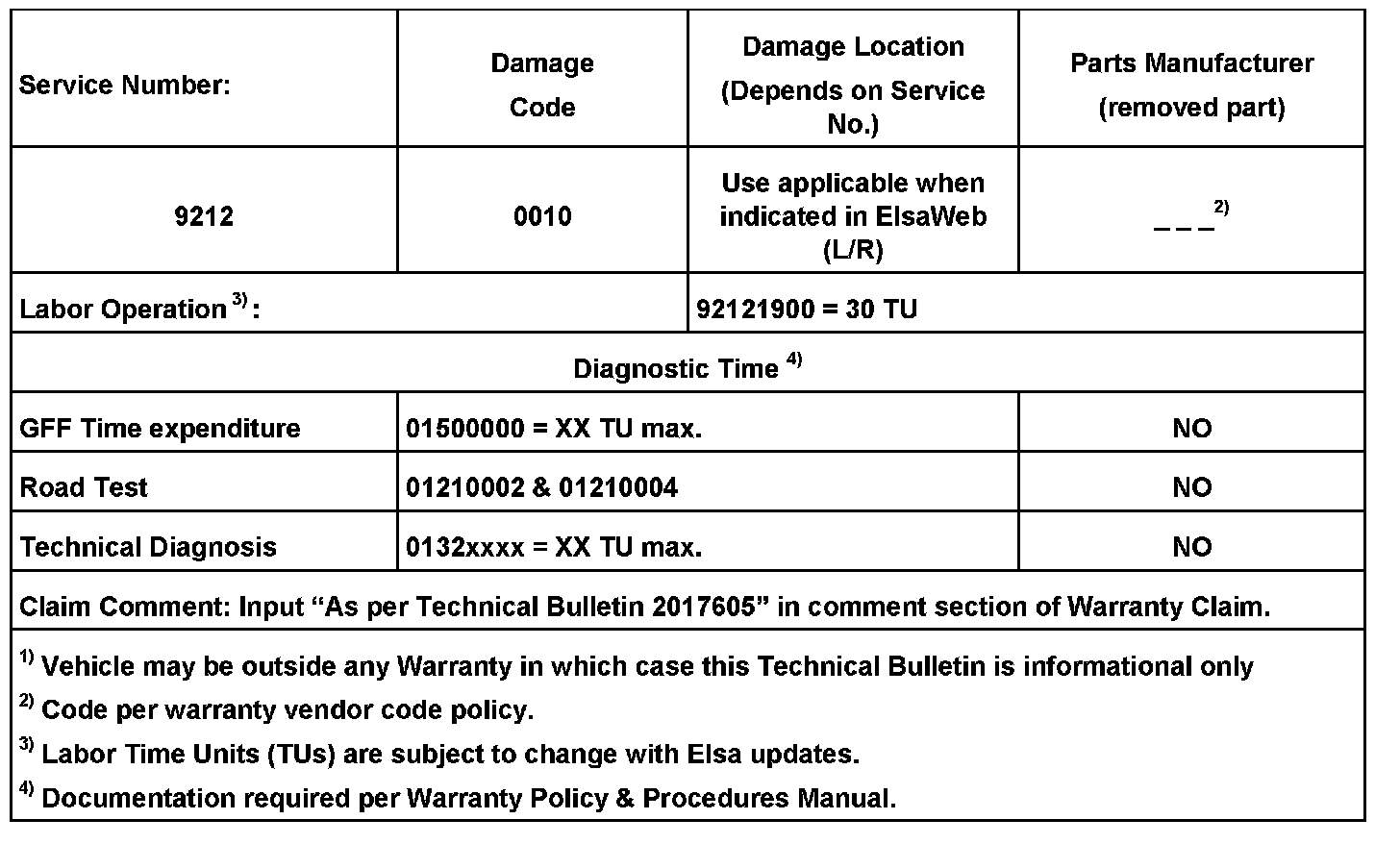

Warranty
Required Parts and Tools
No Special parts Required.
No Special Tools Required.
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
