Relay Carrier With Fuse Holder Under Left Instrument Panel, Removing and Installing

Relay Carrier With Fuse Holder Under Left Instrument Panel, Removing And Installing

CAUTION: When disconnecting and connecting battery, the procedure must be followed as described.

Removing:
- Disconnect battery.
- Remove storage compartment on drivers side.

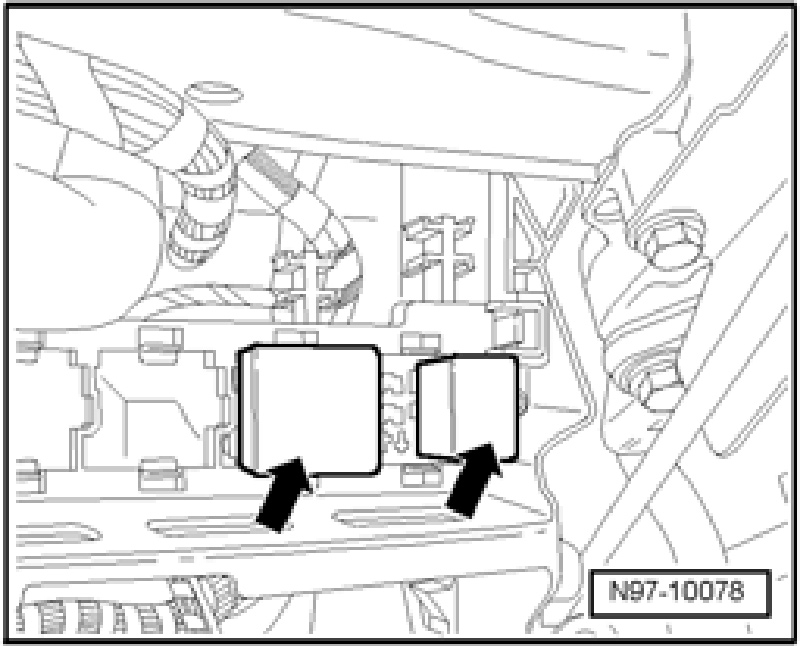

- Remove relays -arrows- from relay carrier.

NOTE: The number of relays is dependent on vehicle equipment.

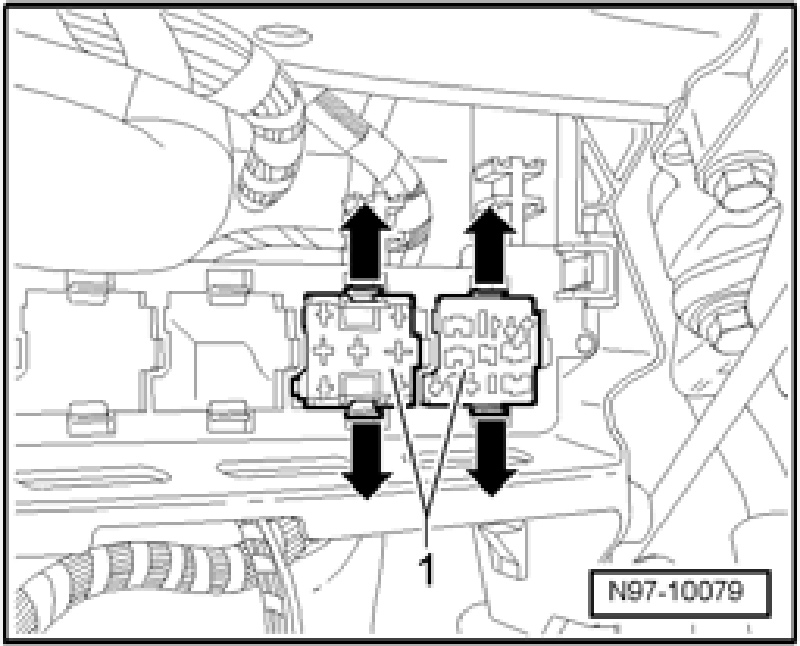

- Clip retaining tabs in -direction of arrow- outward and then press connectors -1- through relay carrier.

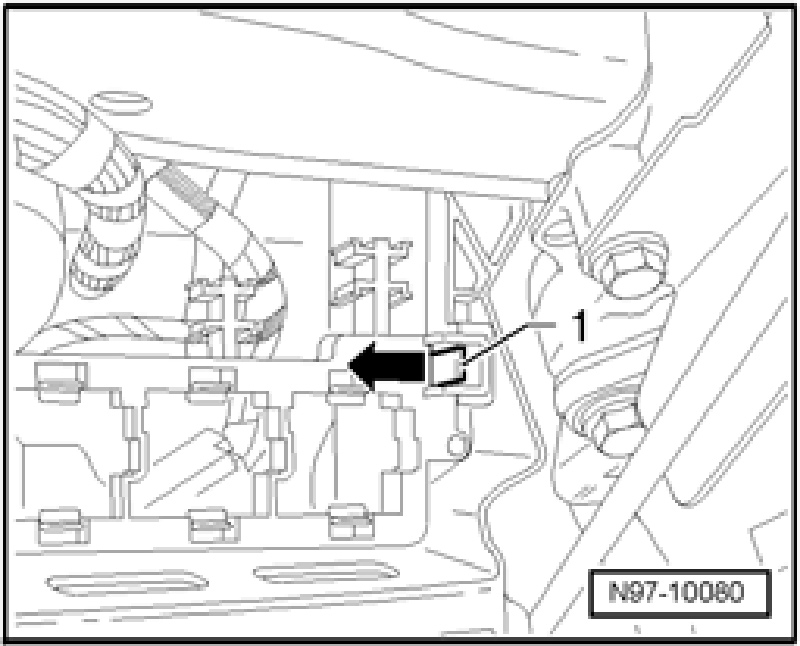

- Release retainer -1- for relay panel in direction of -arrow- and remove relay panel.

Installing:
Install in reverse order of removal, noting the following:
- First clip connector into relay carrier.

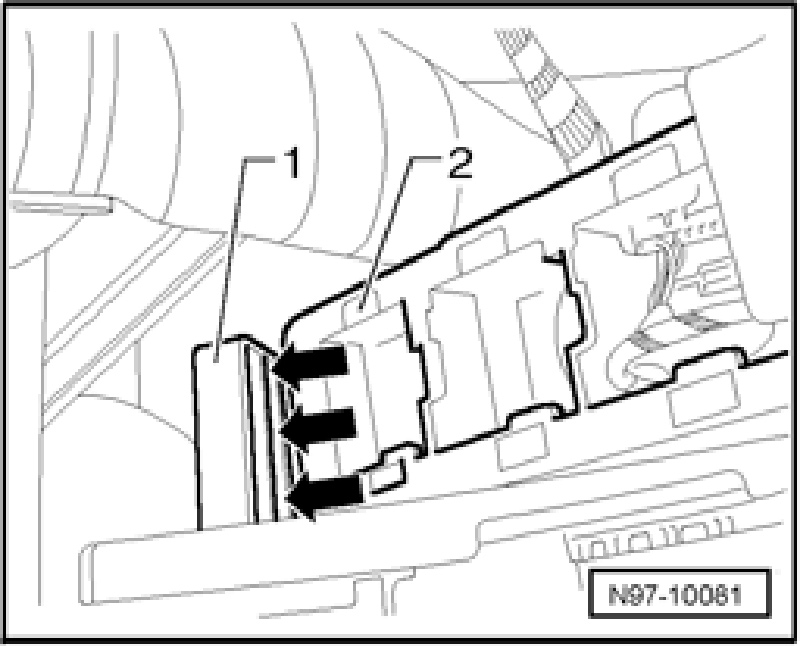

- Place relay carrier -2- into guide -1- and then engage relay carrier.
