Home >> Volkswagen >> 2007 >> Rabbit (1K1) L5-2.5L (BGP) >> Repair and Diagnosis >> Locations >> Control Modules >> Instrument Cluster - K

Instrument Cluster - K

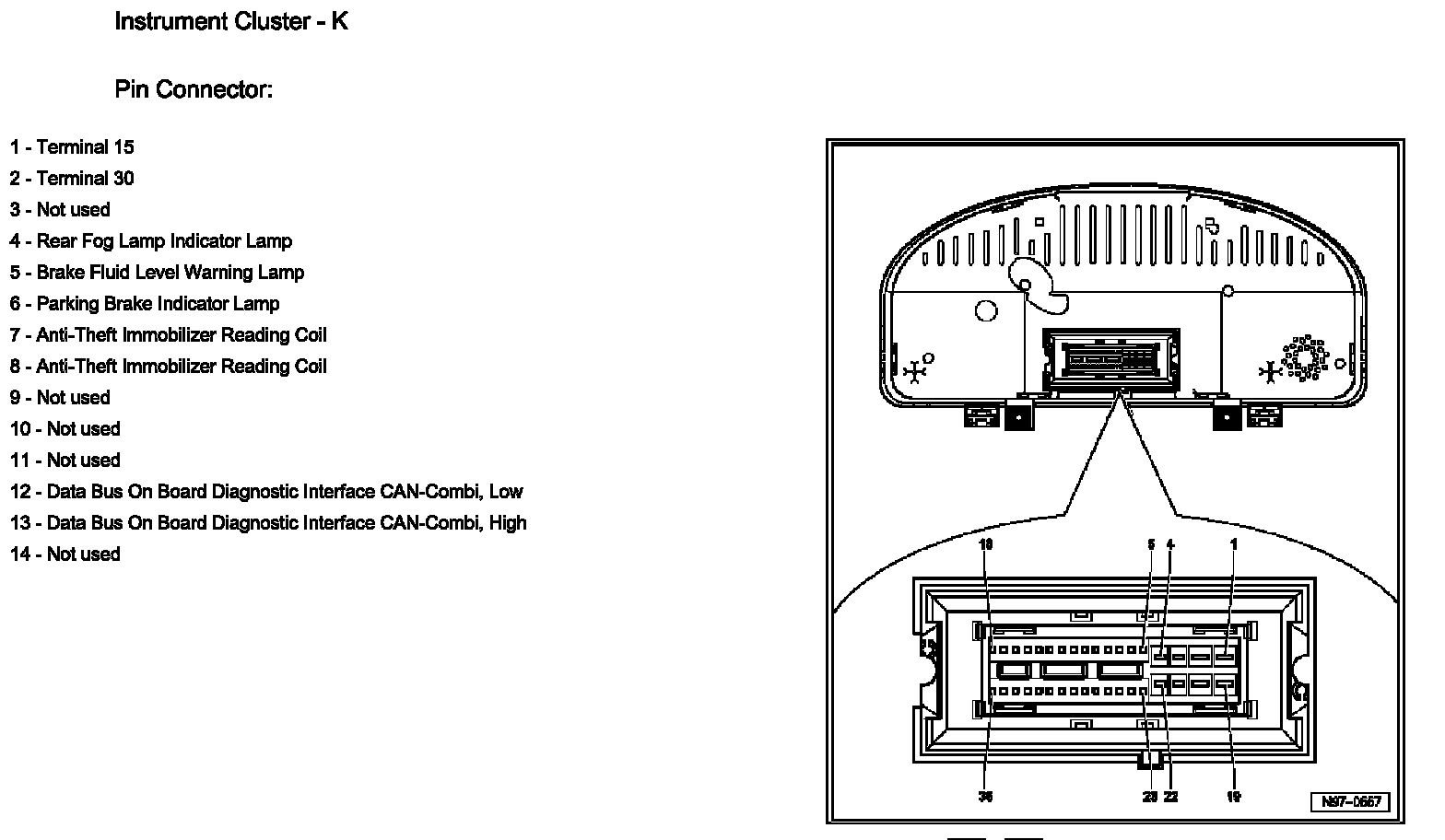

Instrument Cluster - K (Part 1):

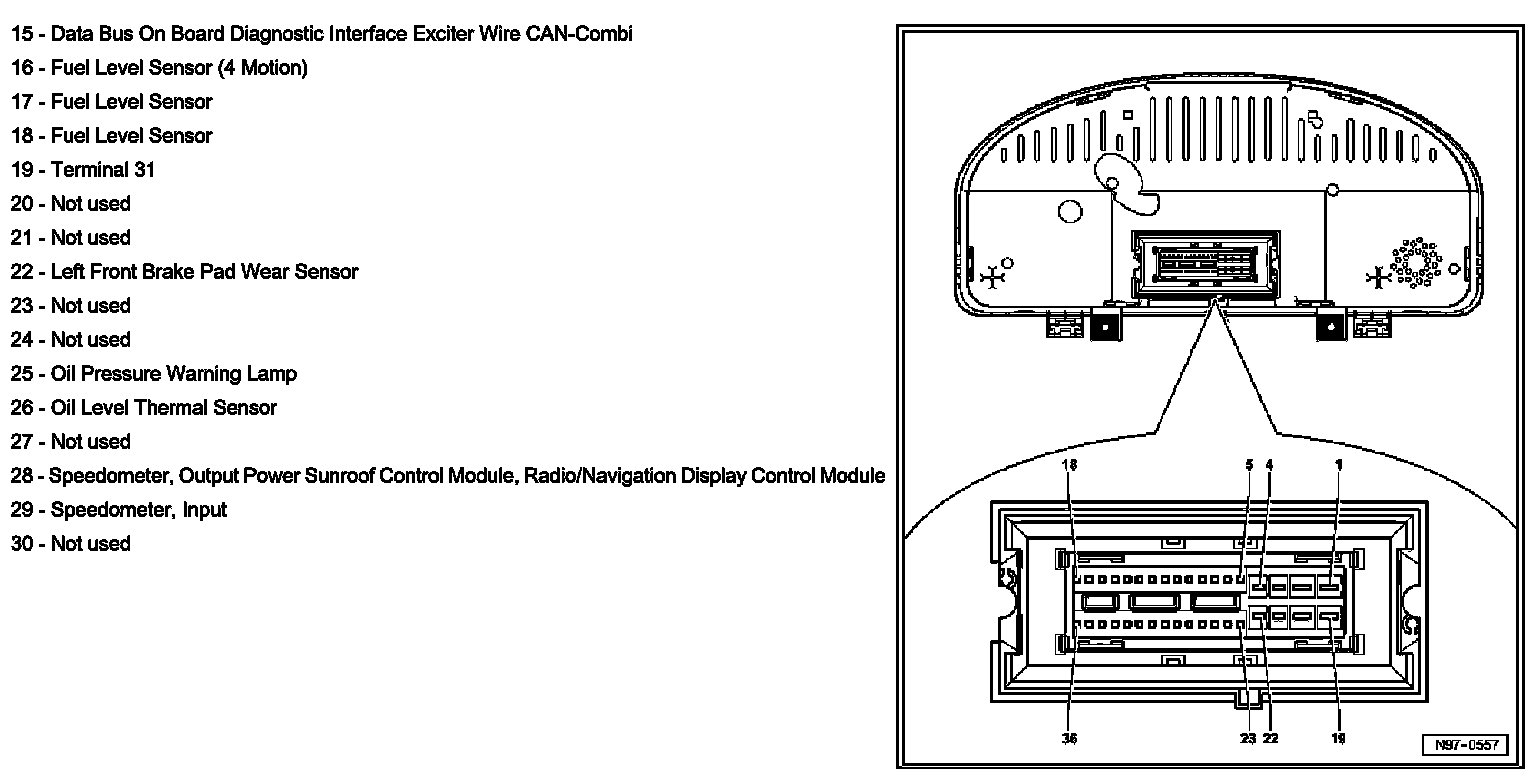

Instrument Cluster - K (Part 2):



Instrument Cluster - K (Part 3):
