Home >> Volkswagen >> 2007 >> Rabbit (1K1) L5-2.5L (BGP) >> Repair and Diagnosis >> Locations >> Control Modules >> ABS/EDL Control Module - J104

ABS/EDL Control Module - J104

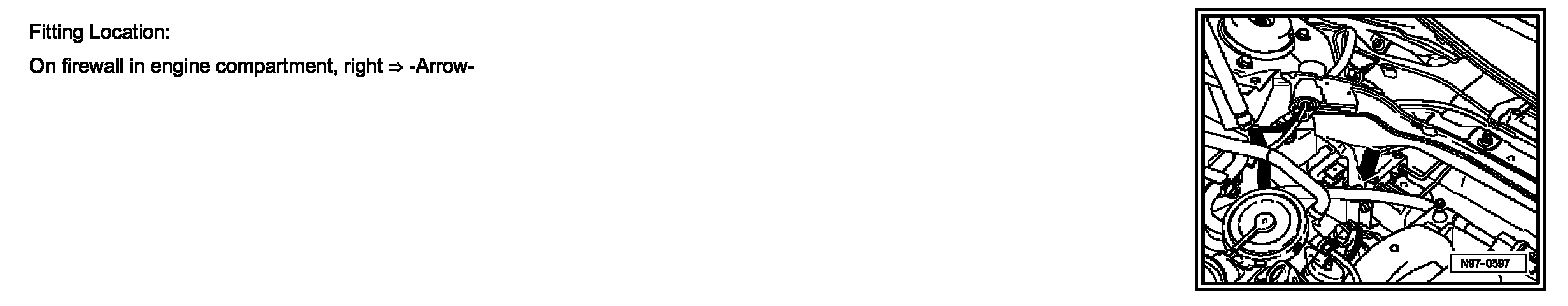

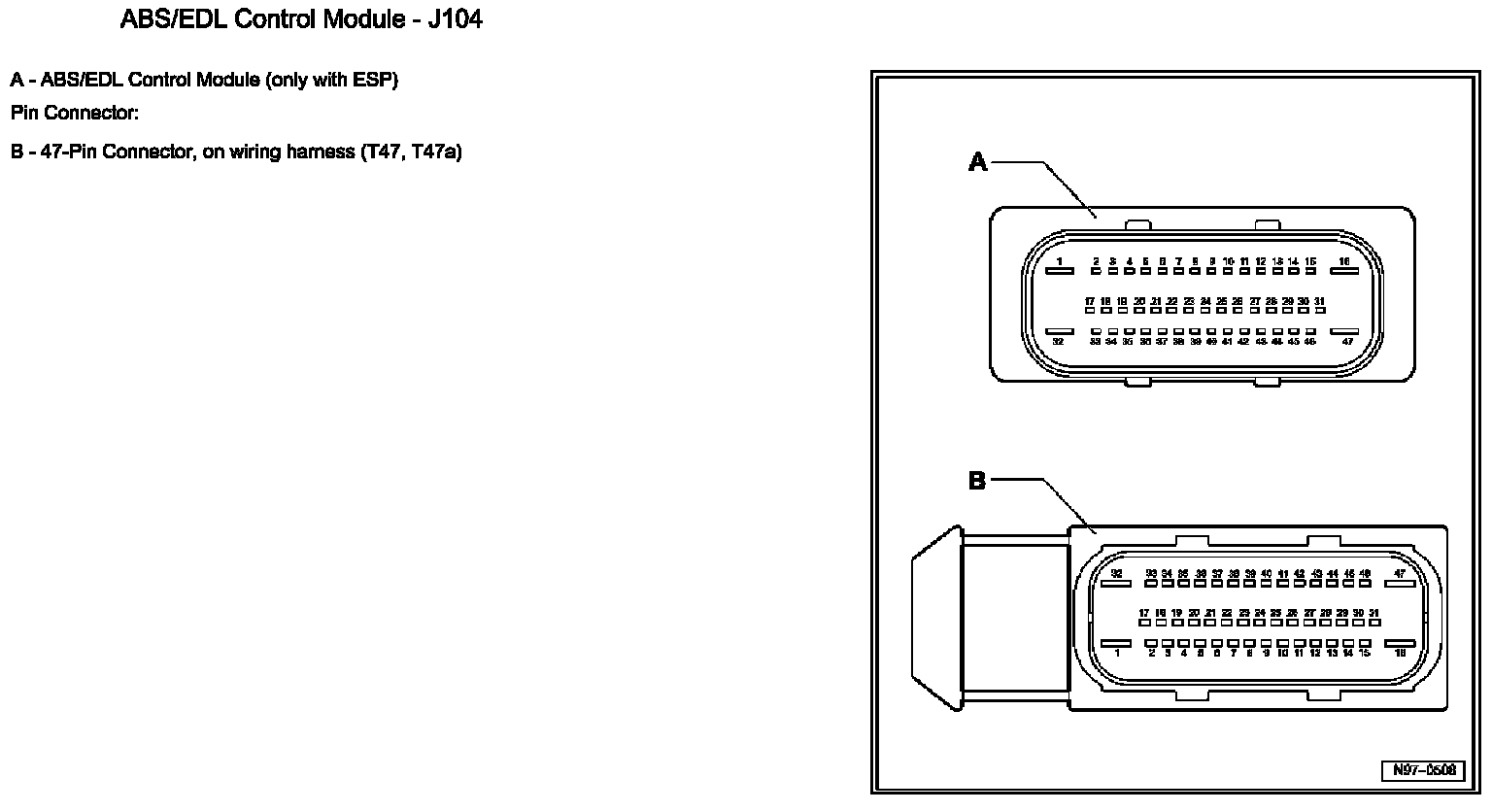

ABS/EDL Control Module - J104:

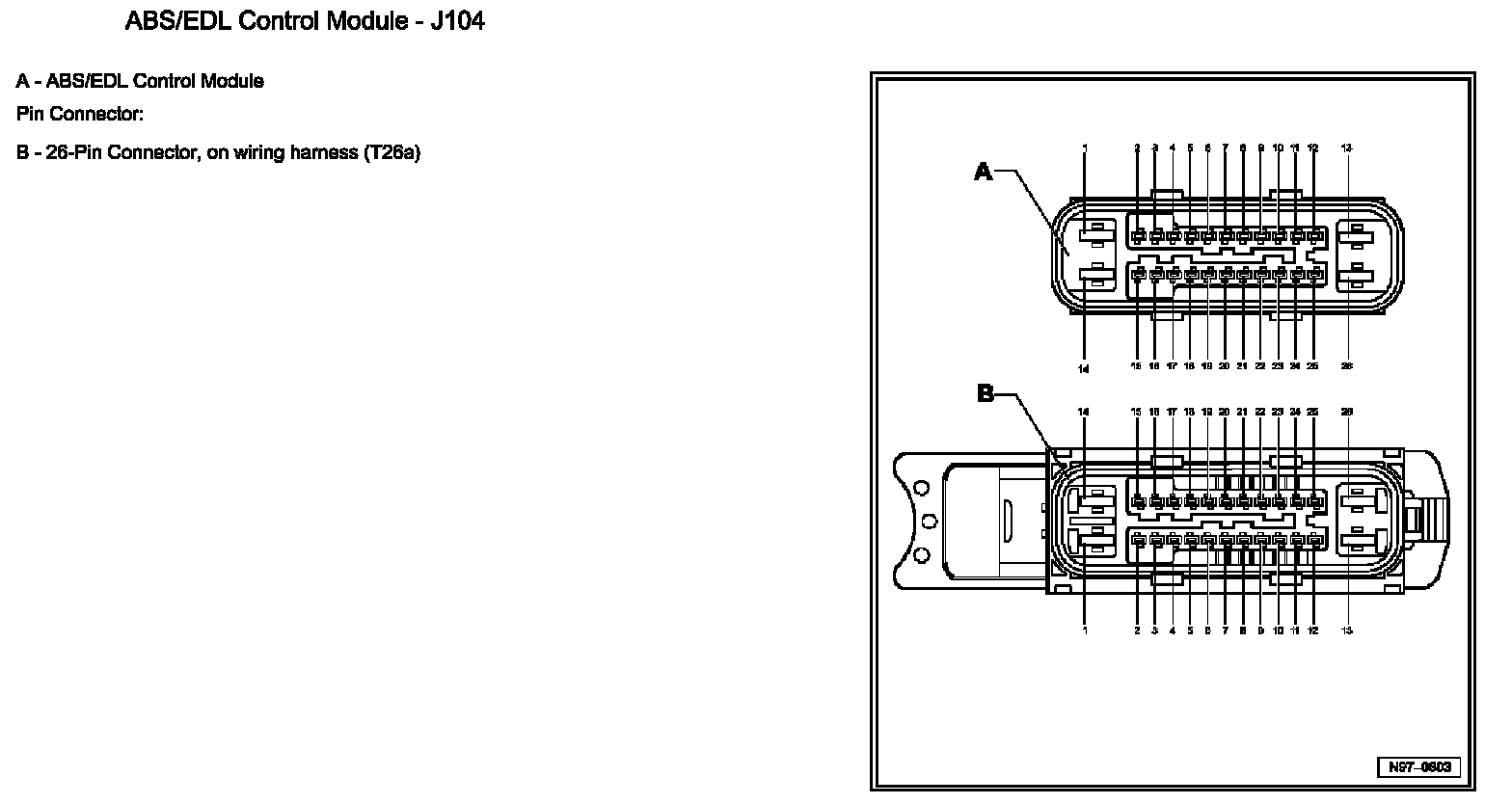

ABS/EDL Control Module - J104:
